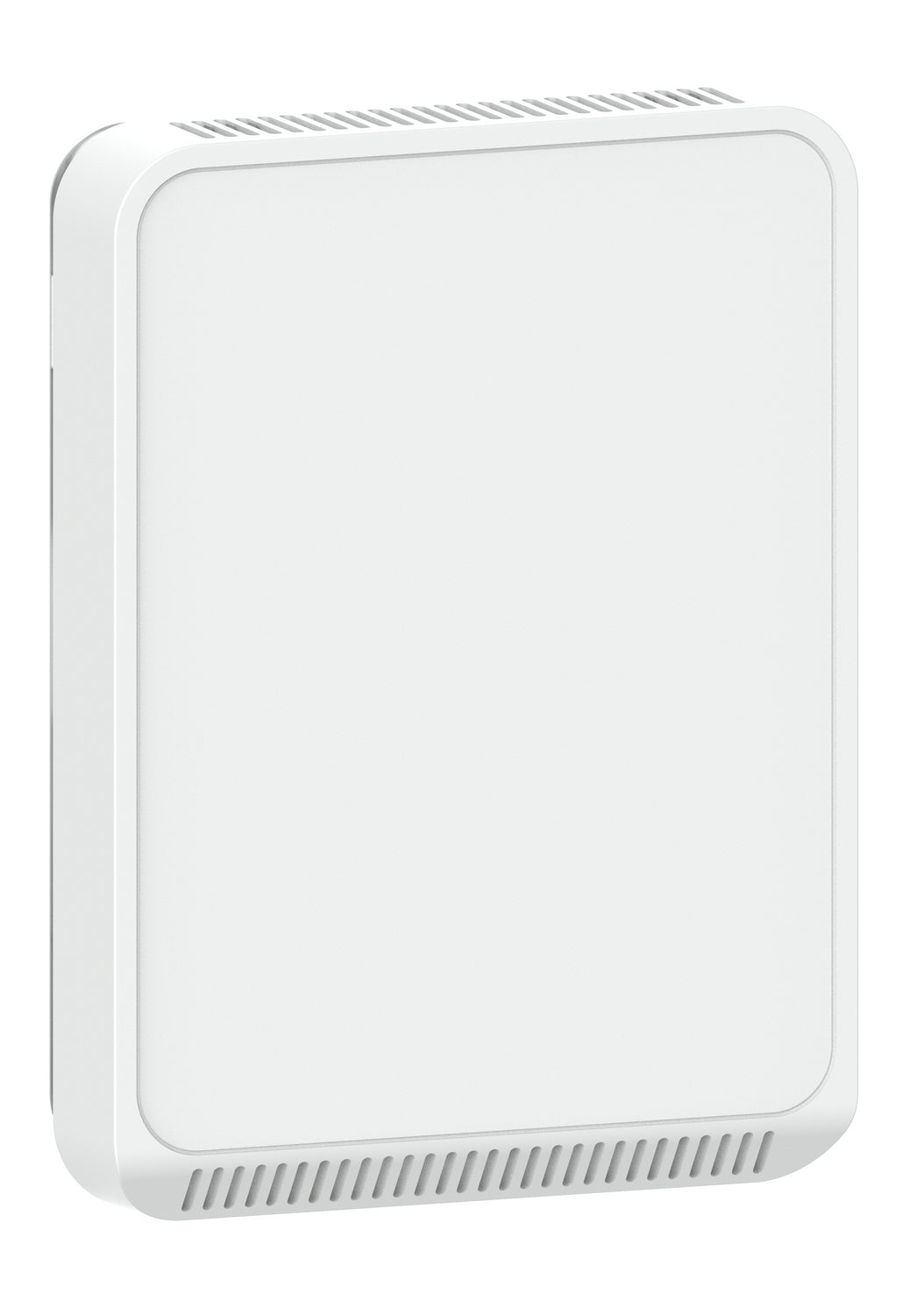

Veris HW2XA2G SpaceLogic Room Unit Power 20...30 V DC|24 V AC

Product Description

The Veris HW2 Series humidity sensor, model HW2XA2G, is designed for wall-mounted installation. This sensor is suitable for measuring humidity and temperature within living spaces. It works seamlessly with Building Automation System (BAS) controllers, offering output options of 4 to 20mA, 0 to 5Vdc, or 0 to 10Vdc.

• Dual functionality measuring humidity and temperature.
• Compatible with various BAS controllers.
• Features multiple user interface options including touchscreen and LCD display.

Product Highlights

Designed for humidity control, this sensor is essential in HVAC applications. It is capable of operating in ambient temperatures from zero to fifty degrees Celsius.

Product Information

Standard Information

• Brand: Veris Industries
• Product Type: Sensor

Technical Specifications

• MPN: HW2XA2G
• Dimensions: 85 mm height, 115 mm width, 24 mm depth
• Operating Voltage: 20...30 V DC, 24 V AC
• Output Type: Analog
• Measurement Range: Humidity: 0-100%, Temperature: 10-35 degrees Celsius
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Weight: 181.82 g
• Hysteresis: 0.015
