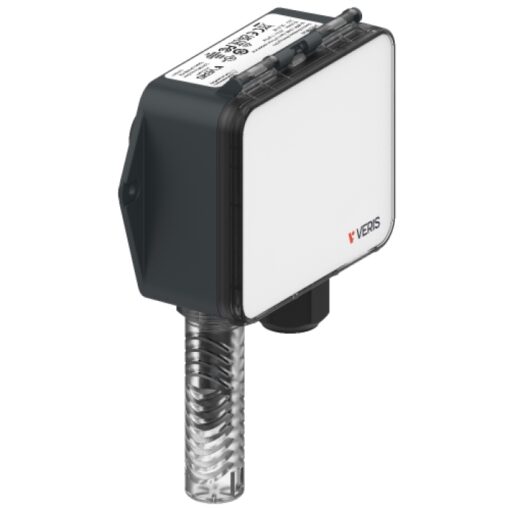

VERIS HO2XA2H Outdoor Relative Humidity and Temperature Sensor

Product Description

The VERIS HO2XA2H is a weatherproof sensor for measuring both humidity and temperature. This device provides reliable data with analog output options of four to twenty milliamps or voltage levels ranging from zero to five volts or zero to ten volts. It uses a solid-state capacitive humidity sensor that is replaceable and includes a 10K Ohm Type 3 thermistor for precise temperature readings.

• Measures relative humidity and temperature
• Offers analog output of 4-20 mA or 0 to 5 Vdc / 0 to 10 Vdc
• Includes a replaceable solid-state humidity sensor

Product Highlights

The device ensures accurate measurements for various outdoor applications.

Product Information

Standard Information

• Measurement Type: Relative Humidity / Temperature
• Enclosure Material: Polycarbonate

Technical Specifications

• Humidity Sensor Type: Solid state capacitive, replaceable
• Temperature Sensor Type: 10K Ohm Type 3 Thermistor
• Humidity Measurement Accuracy: ±2% from 10 to 80% RH @ 25 °C (77 °F)
• Humidity Output Range: 0 to 100% RH
• Temperature Measurement Accuracy: ±0.2 °C (±0.4 °F) typical
• Temperature Measurement Range: -40 to 55 °C (-40 to 131 °F)
• Operating Humidity: 0 to 95% RH non-condensing
• Operating Temperature: -40 to 55 °C (-40 to 131 °F)
