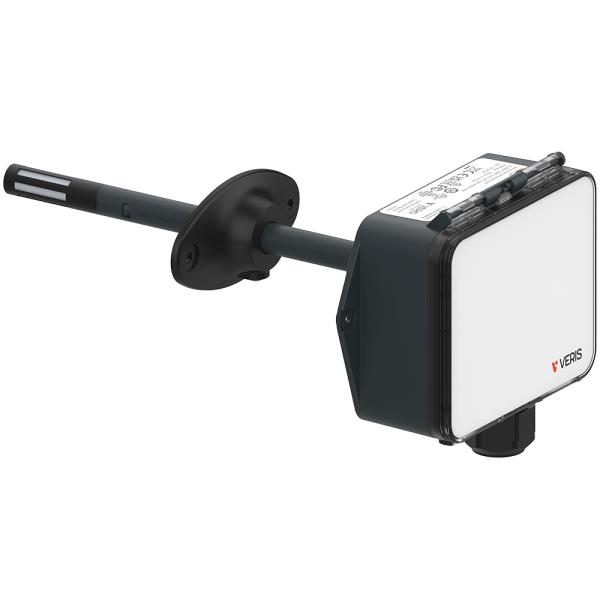

Veris HD2XA2A Duct Relative Humidity Sensor

Product Description

The Veris HD2XA2A Duct Relative Humidity Sensor is designed for effective measurement of humidity and temperature in duct applications. This sensor provides accurate readings and is suitable for various environmental conditions. The device is capable of converting measurements into analog output options, including 4 to 20 mA, 0 to 5 Vdc, or 0 to 10 Vdc.

• Measures humidity and temperature with precision.
• Features a replaceable solid-state capacitive humidity sensor.
• Equipped with a reliable temperature transmitter.

Product Highlights

This sensor is ideal for HVAC professionals needing accurate environmental data.

Product Information

Standard Information

• Agency Approvals: UL 916; CE; FCC Part 15 Class A
• Enclosure Material: Polycarbonate

Technical Specifications

• Operating Temperature: -35 to 60 °C (-31 to 140 °F)
• Operating Humidity: 0 to 95% RH non-condensing
• Humidity Measurement Accuracy: ±2% from 10 to 80% RH at 25 °C
• Humidity Output Range: 0 to 100% RH
• Temperature Measurement Range: -35 to 60 °C (-31 to 140 °F)
• Output Specifications: Selectable 4 to 20 mA, 0 to 5 V, 0 to 10 V
• IP Protection: IP65
• Terminal Blocks: Screwless terminal block with spring actuator
