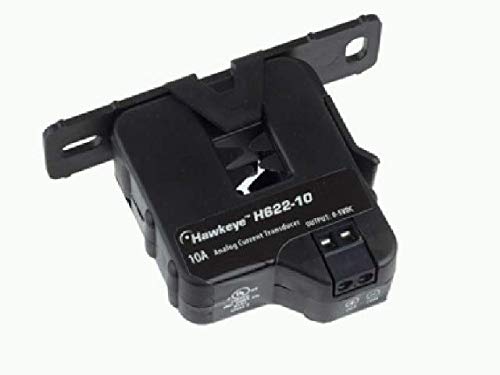

Veris H622-10 LV Instrument Current Transformer Split-Core 0-5VDC

Product Description

The Veris H622-10 Split-Core Current Transformer is designed for precise current measurement within industrial and HVAC applications. This transformer facilitates easy integration into existing setups and is ideal for retrofit projects or new installations.

• Equipped with a 0-5VDC analog output for accurate load trending.
• Capable of handling 0-10 amperage range without requiring jumpers.
• Split-core housing design for streamlined installation.

Product Highlights

This current transformer is self-powered, simplifying installation by eliminating the need for external power sources. Its robust design complies with UL and RoHS standards, ensuring reliable performance and safety.

Product Information

Standard Information

• Brand: Veris
• MPN: H622-10
• Weight: 0.2 lbs

Technical Specifications

• Output Signal: Proportional 0-5VDC
• Amperage Range: 0-10
• Accuracy: ±2% F.S. from 10% to 100% of selected range
• Response Time: 2 seconds
• Terminal Block Torque: 4 in-lbs
• Safety Certifications: UL Listed, RoHS Compliant
• Temperature Range: -15 to 60 degrees Celsius
• Humidity Range: 10-90% RH non-condensing
