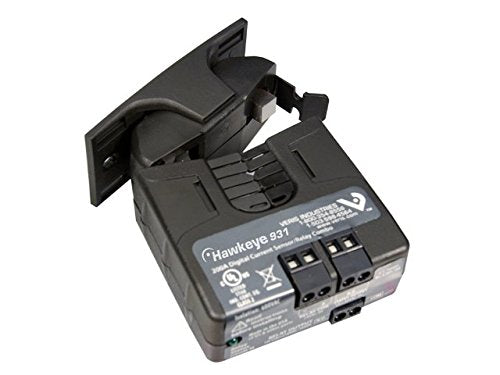

Veris H-931 Current Transducer Split Core 4-20mA

Product Description

The Veris H-931 Current Transducer is a reliable solution for accurate load trending. It features a split-core design and a 4-20mA output signal for versatile applications.

• Provides accurate load trending
• Three selectable amperage ranges
• Integrated command relay

Product Highlights

The Veris H-931 is suitable for start/stop control and status monitoring of motors, integrating both current sensing and relay functions into one device.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: H-931

Technical Specifications

• Power: 30mA max at 12-30VDC
• Insulation Class: 600VAC RMS
• Frequency Range: 50/60Hz
• Temperature Range: -15 to 60 degrees Celsius
• Humidity Range: 10-90% RH non-condensing
• Accuracy: +/-2% full scale from 10% to 100%
• Response Time: 2 seconds
• Terminal Block Wire Size: 14 AWG
• Terminal Block Torque: 4 in-lbs (0.45 N-m)
• Agency Approvals: UL 508 open device listing
