Veris H-909 Switch 2.5-135AAC N/O Output 0.2A at 120V

Product Description

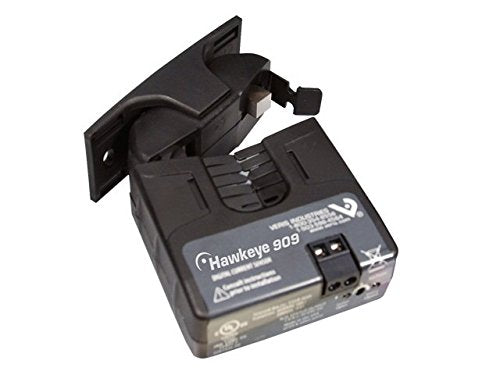

The Veris H-909 switch is a high-performance current switch designed for various industrial applications. It features a normally open output and is capable of handling currents from 2.5 to 135AAC with a maximum output of 0.2A at 120V. This switch is ideal for monitoring line voltage loads and other critical systems.

• Handles currents from 2.5 to 135AAC
• Normally open output
• Maximum output of 0.2A at 120V

Product Highlights

The Veris H-909 switch is equipped with a removable mounting bracket for easy installation and versatility in the field. It operates within a wide temperature and humidity range, making it suitable for harsh industrial environments.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: H-909
• Manufacturer: Veris Industries

Technical Specifications

• Input Voltage Range: 2.5-135AAC
• Output: Normally Open
• Max Output Current: 0.2A at 120V
• Frequency Range: 50/60Hz
• Temperature Range: -15°C to 60°C (5°F to 140°F)
• Humidity Range: 10-90% RH non-condensing
• Terminal Block Wire Size: 14 AWG
• Terminal Block Torque: 4 in-lbs (0.45 N-m)
• Certifications: UL 508, CE: EN61010-1:2001-02 CAT III
