Veris CWE2H SpaceLogic Room Unit CO2 Temperature Sensor 24V AC 20...30 V DC

Product Description

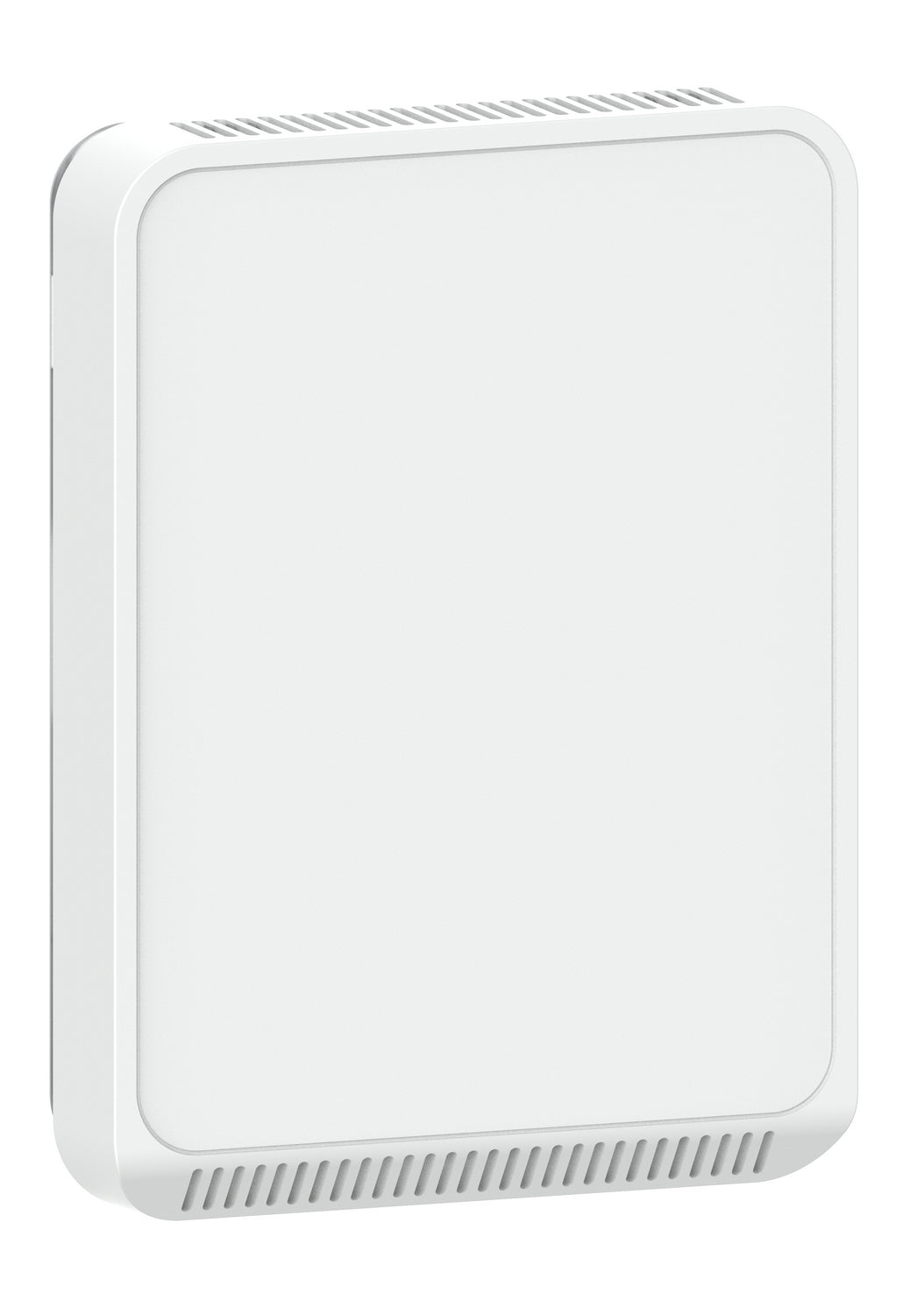

The Veris CWE2H is a temperature and CO2 sensor designed for HVAC applications. This sensor uses NDIR technology for accurate CO2 measurement and incorporates a thermistor for temperature readings. It is suitable for wall mounting and compatible with BAS controllers that accept various output types.

• Accuracy of ±30 ppm ±3% of measured value
• Dual output capabilities: 4-20 mA and 0-10 Vdc
• Temperature operating range: 0 to 50 degrees Celsius

Product Highlights

The CWE2H is ideal for controlling air quality in residential and commercial spaces.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: CWE2H

Technical Specifications

• Measurement Range: SpaceLogic
• Mounting Mode: Wall-mount
• Dimensions: Width: 4.53 inches, Height: 3.35 inches, Depth: 0.94 inches
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Ambient Temperature Range: 0 to 50 degrees Celsius
• Output Voltage: 20-30 V DC or 24 V AC
• Network Frequency: 50 Hz/60 Hz
• Sensor Type: 10 kOhm T3 thermistor with NDIR technology
