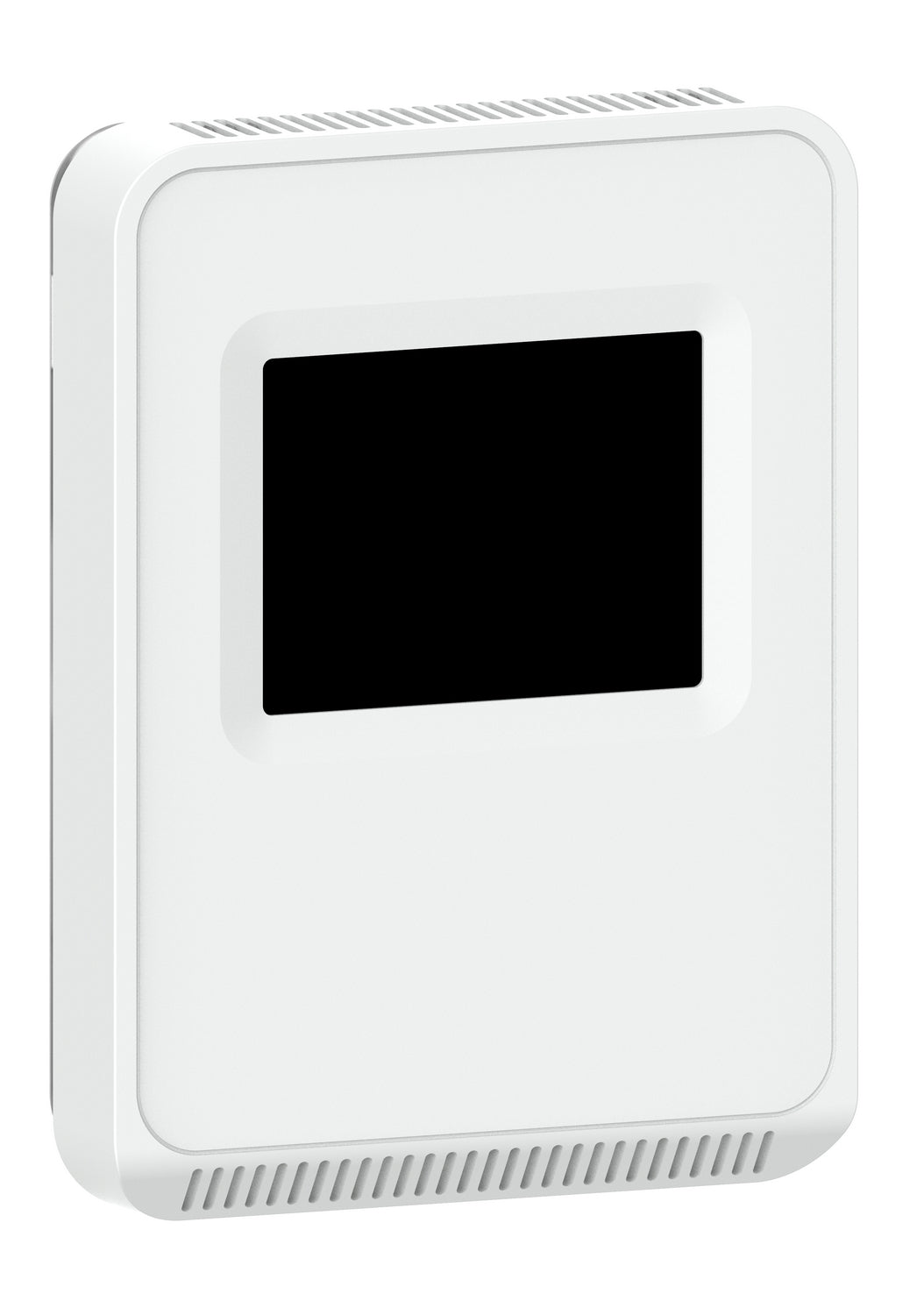

Veris CW2TAXC SpaceLogic Room Unit Power 20...30 V DC 24 V AC

Product Description

The Veris CW2TAXC is a space logic room unit designed for air quality monitoring. It features CO2 and temperature sensing capabilities, with a color touchscreen display. This device is ideal for use in HVAC systems for effective temperature control and fan speed management.

• Color touchscreen for easy interface
• Measures CO2 and temperature for HVAC applications
• Compatible with various output types including 4 to 20 mA, 0 to 5 V DC, and 0 to 10 V DC

Product Highlights

This sensor is part of the CW2 Series from Veris Industries, suitable for wall mounting in residential or commercial settings.

Product Information

Standard Information

• Brand: Veris Industries
• Product Type: Air Quality Sensor

Technical Specifications

• Dimensions: 4.72 inches (width) x 3.35 inches (height) x 0.94 inches (depth)
• Ambient Air Temperature for Operation: 0-50 °C
• Output Type: Analog
• Sensor Type: 1000 Ohm Pt RTD thermistor / NDIR (non-dispersive infrared)
• Display Type: Color Touchscreen
• Power Supply: 20...30 V DC / 24 V AC
• Measurement Type: CO2, Temperature
• Standards Compliance: FCC part 15 class B, UL 916
