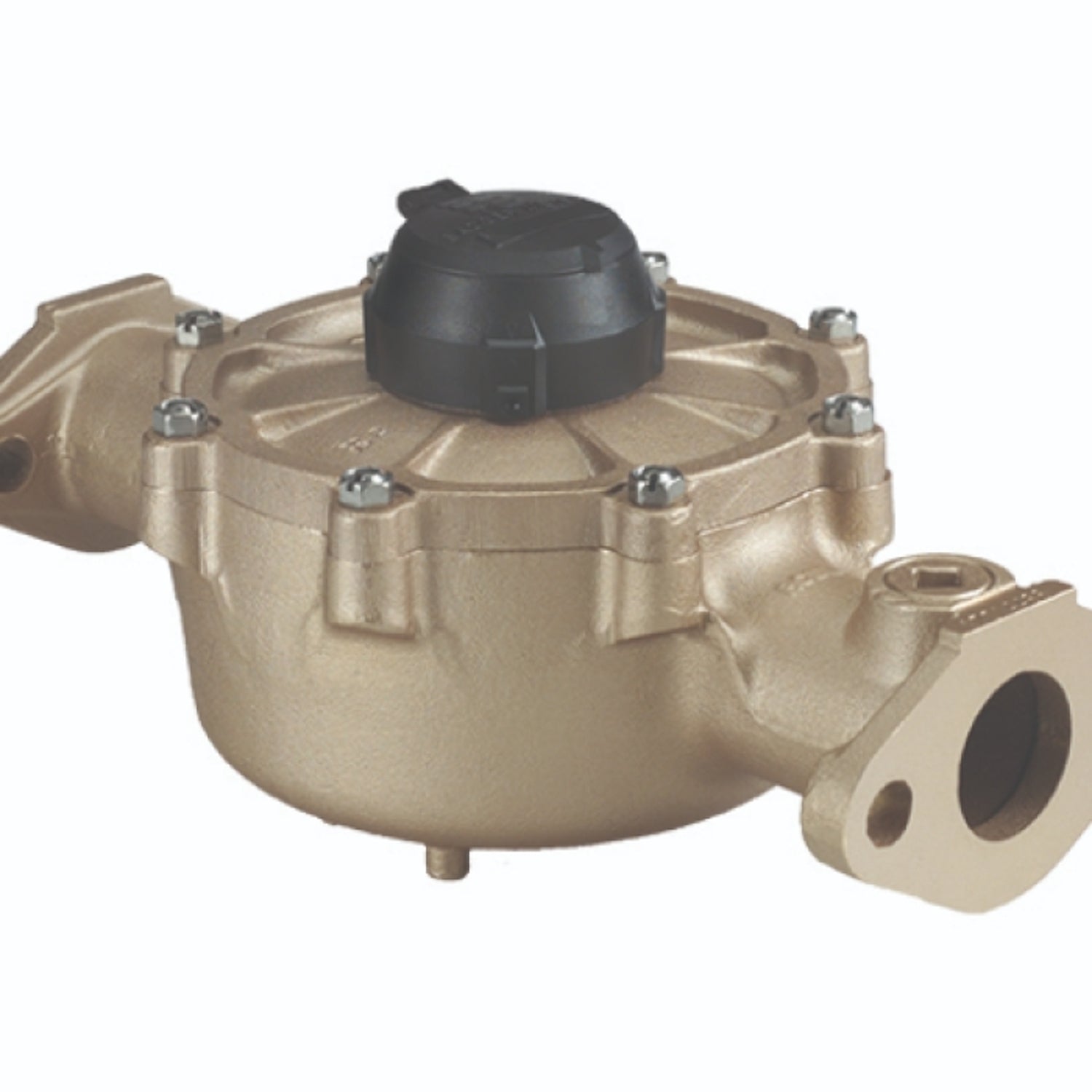

Veris BGR-M25-625LNSA-TS-GAXX Nutating Disc Flow Meter 1/2 In RTR Pulse Out

Product Description

The Veris Industries BGR-M25-625LNSA-TS-GAXX is a nutating disc flow meter designed for precise flow measurement in liquid applications. This device operates efficiently across a flow measurement range from zero point five to twenty-five gallons per minute. It features a resettable totalizer display, which allows for easy tracking of total flow over time.

• Flow Measurement Range: 0.5 to 25 gallons per minute
• Accuracy: ±1.5% of full scale
• Temperature Range: 32°F to 120°F

Product Highlights

The nutating disc design ensures reliable liquid flow measurement without the interference of particulates. This flow meter supports applications within standard piping systems, making it versatile for various industrial uses.

Product Information

Standard Information

• Brand: Veris Industries
• MPN: BGR-M25-625LNSA-TS-GAXX

Technical Specifications

• Fitting Size: 0.5 In
• Fitting Type: Flange
• Flow Measurement Accuracy: ±1.5%
• Flow Measurement Repeatability: ±0.5%
• Flow Sensor Type: Nutating Disc Positive Displacement
• Housing Material: Lead-Free Bronze Alloy
• Measurement Type: Flow
• Medium: Liquids, No Particulates
• Operating Fluid Temperature: 0 to 49 °C (32 to 120 °F)
• Operating Pressure: 150 psi Max.
• Outputs: Pulse Output
• Standards: NSF/ANSI Standards 61 and 372
