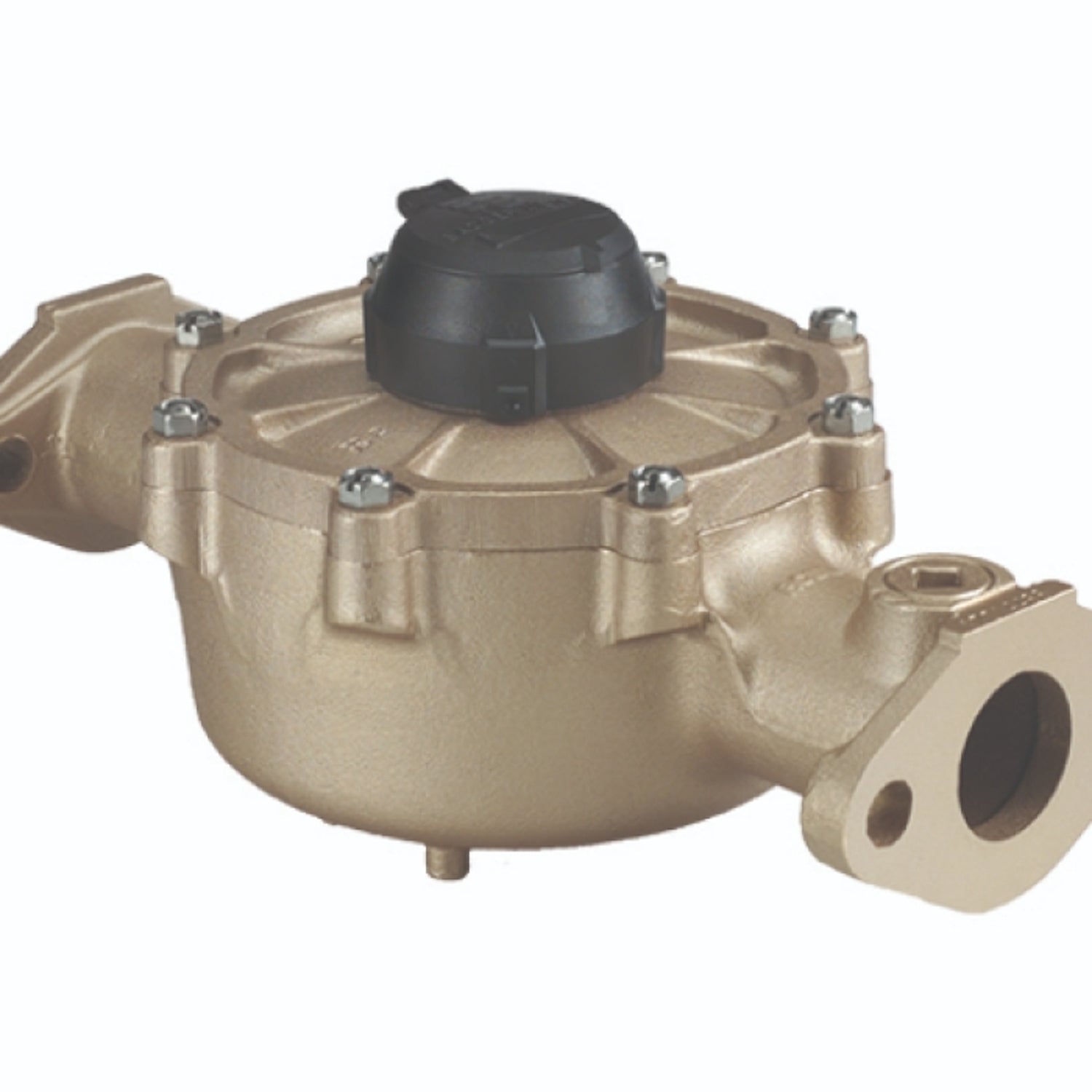

Veris BGR-M170-200LNSG-TS-GAXX Nutating Disc Flow Meter 2 In RTR Pulse Out

Product Description

The Veris BGR-M170-200LNSG-TS-GAXX Nutating Disc Flow Meter is designed for measuring liquid flow. This model has a fitting size of two inches and features a RTR pulse output. It is well suited for applications where accurate flow measurement is essential.

• Measurement Range: Two to 120 gallons per minute
• Accuracy: Plus or minus 1.5 percent of full scale
• Operating Temperature: Zero to 49 degrees Celsius (32 to 120 degrees Fahrenheit)

Product Highlights

The flow meter measures liquid flow accurately, making it ideal for various industrial applications. This device is important for tracking fluid volumes.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• Flow Measurement Accuracy: Plus or minus 1.5%
• Flow Measurement Repeatability: Plus or minus 0.5%
• Operating Pressure: 150 psi Max
• Housing Material: Lead-Free Bronze Alloy
• Flow Sensor Type: Nutating Disc Positive Displacement
• Medium: Liquids, No Particulates
• Outputs: Pulse Output
• Compliance: NSF/ANSI Standards 61 and 372
