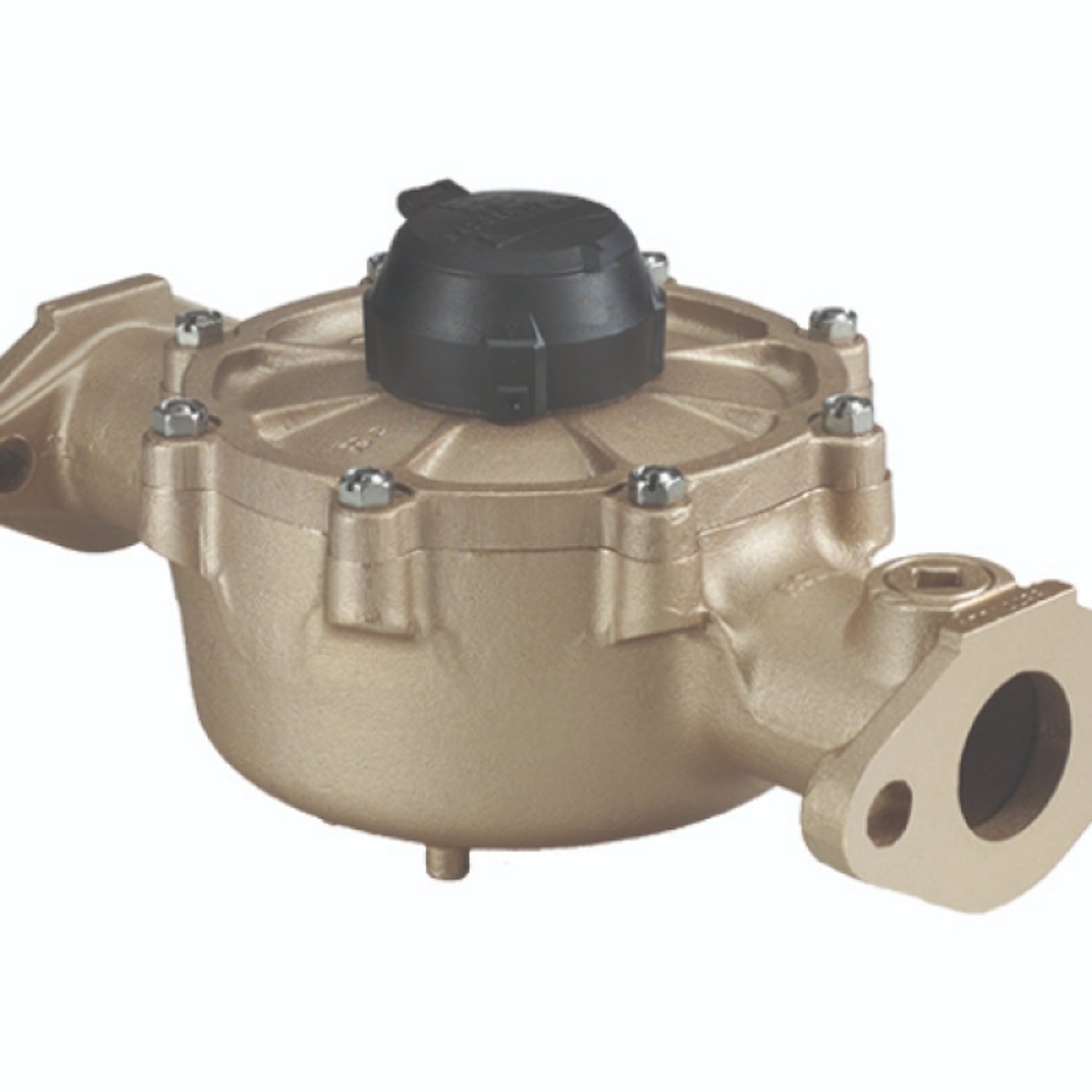

Veris BGR-M120-150LNSF-TS-GAXX Nutating Disc Flow Meter 1.5 In RTR Pulse Out

Product Description

The Veris Industries BGR-M120-150LNSF-TS-GAXX is a nutating disc flow meter designed to measure the flow of liquids. This sensor features a fitting size of one point five inches and delivers rotary pulse output for precise flow measurements.

• Application: Flow measurement of liquids
• Connections: Includes cast iron fittings
• Display Type: Dial with totalizer

Product Highlights

Utilize this sensor for accurate flow readings in various liquid applications, ensuring compliance with NSF/ANSI standards.

Product Information

Standard Information

• Brand: Veris Industries
• Manufacturer: Schneider Electric

Technical Specifications

• Flow Measurement Accuracy: ±1.5% of full scale
• Flow Measurement Range: 2 to 120 gpm
• Flow Sensor Type: Nutating disc positive displacement
• Operating Fluid Temperature: 0 to 49 °C (32 to 120 °F), optional to 121 °C (250 °F)
• Operating Pressure: 150 psi max
• Output Type: Pulse output
• Housing Material: Lead-free bronze alloy
• Measurement Type: Flow
