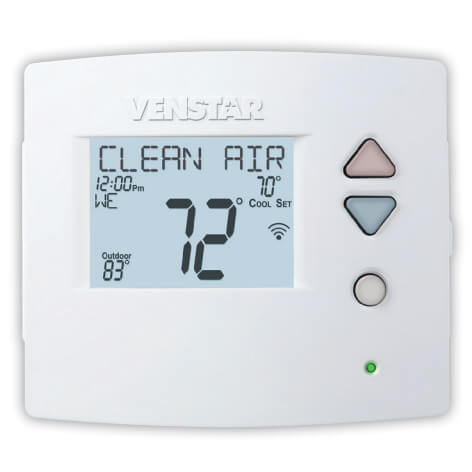

Venstar T4950-IAQ Explorer-IAQ Commercial Air Patrol VenNet (4H, 2C)

Product Description

The Venstar T4950-IAQ Explorer-IAQ is a commercial thermostat with built-in Wi-Fi, Bluetooth, and VenNet connectivity. Designed for commercial applications, it features AIR PATROL, which continuously monitors and controls indoor air quality. The thermostat controls humidification, dehumidification, and reheat with adjustable timers and deadbands.

• AIR PATROL - Indoor Air Quality Sensor built-in that continuously monitors IAQ
• IAQ levels viewable on display
• Switchable: auto changeover or heat, cool only

Product Highlights

Smart digital thermostat with a Built-In Indoor Air Quality Sensor. Compatible with easy pairing VenNet wireless sensors.

Product Information

Standard Information

• Brand: VENSTAR
• Manufacturer Part Number: T4950-IAQ

Technical Specifications

• Color: White
• Mount: Horizontal, Wall Mount, Wall-Mounted
• Options: Large Buttons, Wireless, Large Display, Auto Changeover, Smart Fan
• Voltage: 24v
• Features: Dehumidification Control, Keypad Lockout, Humidification Control, Digital Display, Wireless, Automatic Changeover, Remote Control, Wi-Fi
• Measures: Celsius, Fahrenheit
• Application: Multi-Stage (Heat/Cool), Commercial, 4 Heat/2 Cool
• User Interface: Push Button
• Programmability: 24 Hour, Programmable, Non-Programmable, Selectable non-programmable or 7-day programmable
• Connectivity: Built-in Wi-Fi, Bluetooth, and VenNet, Wi-Fi, Bluetooth
• Skyport Connectivity: 365-Day programmable when connected to Skyport
• Sensors: Built-in light sensor
• Output: Programmable Output
• Fan Control: Pre-occupancy fan purge, Fan reverts to auto mode when unoccupied
• Override: Up to 4-hour override
• Input: Dry contact input
• Runtime Count: Separate counts of override and light runtime
• 24V Output: 24V Output turns on when IAQ above defined limit
• Adjustable Timers: Adjustable interstage timers and deadbands
• Setpoint Limits: Setpoint Limits
• Device Type: Wi-Fi Thermostat, Programmable Thermostat, Non-Programmable Thermostat
• Display: Lock Out
• IoT/ Smart Home Compatibility: Alexa, Google Assistant, Ring, Amazon Alexa
• Wireless Protocols: Wi-Fi, Bluetooth
• Control Style: Amazon Alexa, App Control, Google Assistant, Remote Control, Wi-Fi, Digital
• Heating Stages: 4
• Cooling Stages: 2, 1
• 7 Day Programmable: Yes
• Dehumidification Control: Yes
• 365 Day Calendar: Yes
• Additional Features: 365 Day Calendar, 7-Day Programmable, Dehumidifaction Control, Humidity Sensor, Remote Adjustment, Remote Control, Sensor Averaging, Temperature Sensor
• Mounting: Wall Mount
• Dimensions (Inches): 5.2 x 4.5 x 1.3
• Weight: 1 lb
• Compliance: California Title 24
• Brand: Venstar
• MPN: T4950IAQ
• Power Source: Battery, Corded Electric
• Year Manufactured: 2021
• Compatible Product: Universal
• Battery Size: AA
• Compatible Brand: Venstar
• Thermostat Shape: Square
• Number of Periods per Programmable Day: 7
• Wire Configuration: 5-Wire
• Display Size: 2.5 in (6.35 cm)
• Heat Stages: 1
• Thermostat Programmable Days: 7- Day
• Material: Plastic
• Sensor Technology: Temperature
• Voltage Type: Low Voltage
• System Switching: Auto
• Smart Home Protocol: Bluetooth/Bluetooth Low Energy (BLE)
