Velocity Boiler Works MS2-050 Mega-Stor II Wtr Htr 50.6 Gallon

Product Description

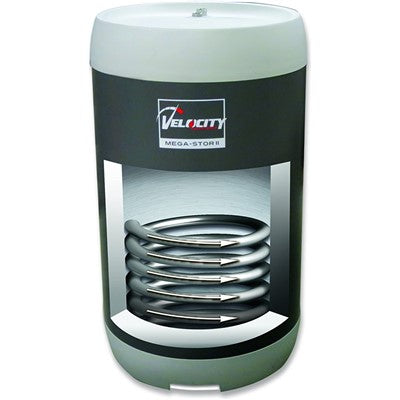

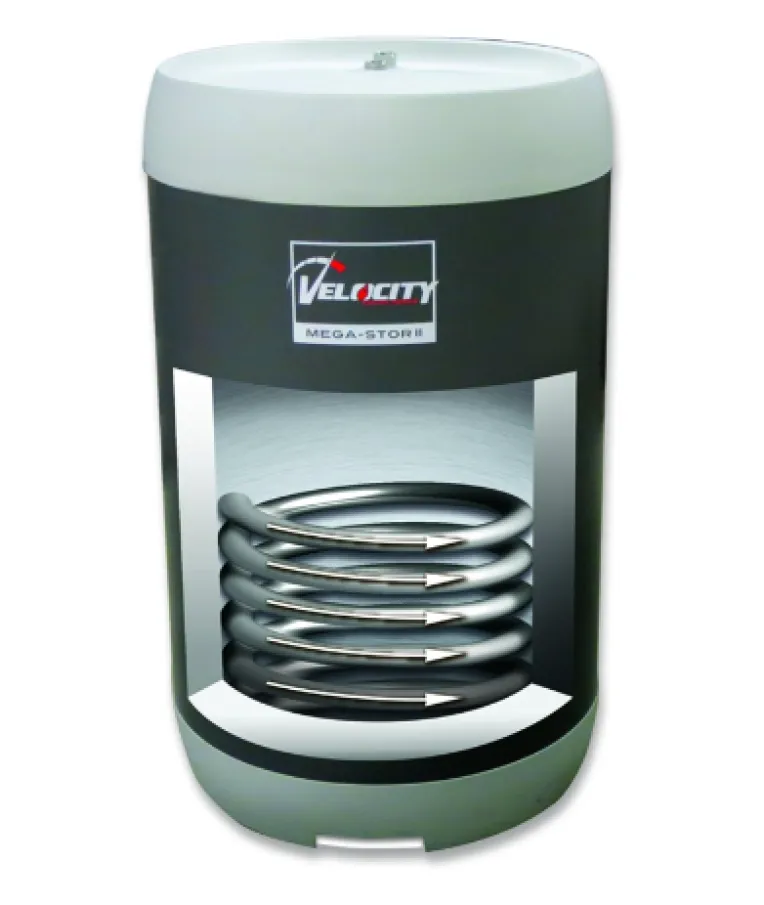

The VELOCITY BOILER WORKS MS2-050 Mega-Stor II Wtr Htr is an indirect water heater with a 50.6-gallon tank capacity, constructed from 444 stainless steel. Designed for residential and commercial applications, it features a large diameter, smooth surface heat exchanger coil for efficient performance. The tank is insulated to keep water hot for extended periods.

• Passivated for maximum corrosion resistance.
• Rugged design with coated steel jacket and heavy-duty polymer top and bottom to resist cracks and abrasions.
• Large diameter, smooth surface stainless steel coil maintains superior performance over the life of the tank.

Product Highlights

This heavy-duty, adjustable, and rugged water heater includes a Honeywell L4080B adjustable aquastat and internal stainless steel well.

Product Information

Standard Information

• Brand: VELOCITY BOILER WORKS
• Manufacturer Part Number: MS2-050

Technical Specifications

• Application: Residential, Commercial
• Tank Capacity: 50.6 Gallon
• Tank Material: 444 Stainless Steel
• Pressure Rating: 300 PSI (Test), 150 PSI (Working)
• Flow Rate: 8 GPM
• Head Loss: 2.9 Foot Water Column
• Applicable Standard: ETL (US), AHRI
• Gross Boiler Output: 121 MBH
• Options: Anode Rod, Thermostat, T and P Valve, Lifting Lug, Relief Valve
• Relief Valve Details: Temperature and Pressure Relief Valve
• Inclusions Features: Honeywell L4080B Adjustable Aquastat and Internal Stainless Steel Well
• Inlet Outlet Connection: 3/4 Inch Female Threaded x 3/4 Inch Female Threaded
• Heat Exchanger Coil Type: Large Diameter, Smooth Surface
• First Hour Rating: 236 GPH
• Continuous Draw Rating: 193 GPH
• Standby Loss: 0.9 Deg F per Hour
• Temperature Rating: 180 Deg F
• Temperature Rise: 77 Deg F DHW
• Draw Rating: 44 Gallon (First Draw Rating), 3.2 GPM (Draw Rate)
• Type: Indirect Fired
• Jacket Construction: Coated Steel (sizes 30-75)
• Storage Capacity: 30 – 119 Gal
• First Hour Rating (135°): 162 – 497 Gal/hr
• Cont. Draw Rating: 138 – 417 Gal/hr
• Notes: Honeywell adjustable aquastat
• Minimum Boiler Output: 121 MBH
• Boiler Water Min. Flow: 8.0 Gal/Min
• Tank Heat Source Friction Loss: 2.9 Ft. w.c.
• Potable Volume: 50.6 Gal
• Product Category: Water Heater – Indirect-Fired
• Product Line: Mega-Stor II
• Medium: Hot Water
• Fuel Type: Indirect Fired
• Storage Type: Tank
• Coils Quantity: 1
• Connection Type: NPT
• Mount Type: Floor
• Material: Stainless Steel
• First Hour Delivery: 236 Gallons
• Continuous Recovery Rate: 193 Gallons
• Cold Water Inlet: 3/4”
• Hot Water Outlet: 3/4”
• Supply Connection: 1”
• Return Connection: 1”
• Boiler Supply Return Connection: 1 Inch Female Threaded x 1 Inch Female Threaded
• Voltage: 120 Volts
• Phase: 1
• Frequency: 60 Hz
• Storage Volume: 50.6 Gallons
