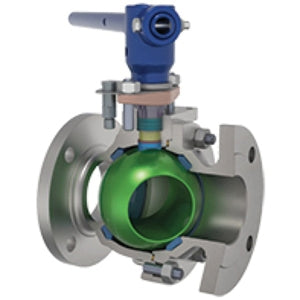

Velan F18-11402-SSEX-G Flgd 300 Split CS/SS FP Live Loaded MPTFE Ball Valve Gear Operator 12 IN

Product Description

The Velan F18-11402-SSEX-G is a Class 300 carbon steel gear operator full-port live loaded split-body ball valve. This Memoryseal™ ball valve is designed to handle an extensive range of applications. It features a flanged connection and is suitable for use with various media within its pressure and temperature ratings. It is a 12 IN ball valve.

• Designed to handle an extensive range of applications
• Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards
• Suitable for steam service up to 150 PSIG (10.3 BAR) with MPTFE seats and graphite packing

Product Highlights

The Velan Memoryseal™ ball valve is a versatile and high-performance valve suitable for various industrial applications. It meets ASME and API standards.

Product Information

Standard Information

• Brand: VELAN
• Manufacturer Part Number: F18-11402-SSEX-G

Technical Specifications

• Sub Brand: Memoryseal™
• Item Name: Ball Valve
• Type: Full-Port, Live Loaded, Split-Body
• Nominal Size: 12 IN
• Connection Type: Flanged
• Pressure Rating: 100 - 740 PSI
• Pressure Class: Class 300
• Temperature Rating: 100 - 450 DEG F
• Body Material: Carbon Steel
• Operator Type: Gear Operator
• Handle Material: Malleable Iron
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: PTFE
• Gland Material: 304 Stainless Steel
• Seat Material: MPTFE
• Seal Material: MPTFE
• Material Standard: Body: ASTM A105 Grade WCB, Stem: ASTM A276
• Industry Standards: ASME B16.5, ASME B16.10, ASME B16.34, API 608, API 598, API 607 Rev. 5/ISO 10497, UL Listed
• Width: 24 IN
• Other Physical Dimension: 20-1/2 IN Flange Diameter, 22.59 IN Inlet Center To Top Of Handle
• Additional Specifications: Flow Co-Efficient (Cv): 23800
• Brand: Velan
• Firesafe: No
