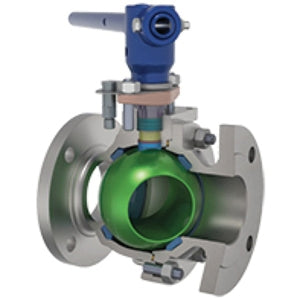

Velan F16-01402-SSEX-G Memoryseal Ball Valve 10 IN Flanged

Brand: VELAN
SKU: F16-01402-SSEX-G
Availability: In Stock

Ships via freight in 1-3 business days
$17,882.78
$17,882.78
LTL Delivery

This product weighs 145 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Velan F16-01402-SSEX-G Memoryseal™ split-body resilient-seated ball valve is designed for a range of applications. It features MPTFE seats and graphite packing, suitable for steam service up to 150 PSIG. Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards. The valve has a carbon steel body and a gear operator.

  • Designed to handle an extensive range of applications
  • Standard valves with MPTFE seats and graphite packing can handle steam service up to 150 PSIG (10.3 BAR)
  • Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards

Product Highlights

Full-port, live loaded, split-body ball valve with flanged connection, carbon steel body, and gear operator.

Product Information

Standard Information

  • Brand: VELAN
  • Manufacturer Part Number: F16-01402-SSEX-G
Technical Specifications
Sub Brand
Memoryseal™
Item Name
Ball Valve
Type
Full-Port, Live Loaded, Split-Body
Nominal Size
10 IN
Connection Type
Flanged
Pressure Rating
100 - 285 PSI
Pressure Class
Class 150
Temperature Rating
100 - 450 DEG F
Body Material
Carbon Steel
Operator Type
Gear Operator
Stem Material
316 Stainless Steel
Trim Material
316 Stainless Steel Ball
Packing Material
PTFE
Gland Material
304 Stainless Steel
Seat Material
MPTFE
Seal Material
MPTFE
Material Standard
Body: ASTM A105 Grade WCB, Stem: ASTM A276
Industry Standards
ASME B16.5, ASME B16.10, ASME B16.34, API 608, API 598, API 607 Rev. 5/ISO 10497, UL Listed
Width
21 IN
Lead Free
No
Other Physical Dimension
20.84 IN Inlet Center To Top Of Handle
Additional Specifications
Flow Co-Efficient (Cv): 16400
