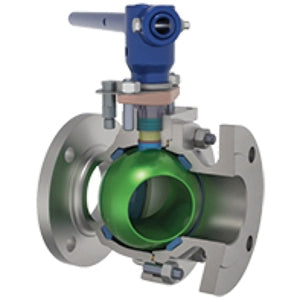

Velan F14-11402-SSEX Flgd 300 Split CS/SS FP Live Loaded MPTFE Ball Valve Lever Handle

Product Description

The Velan F14-11402-SSEX is a flanged, split-body ball valve designed for a range of applications. This Class 300 carbon steel valve features a full-port, live-loaded design. It has MPTFE seats and graphite packing suitable for steam service. Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards.

• Designed to handle an extensive range of applications.
• Standard valves with MPTFE seats and graphite packing can handle steam service up to 150 PSIG (10.3 BAR).
• Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards.

Product Highlights

Class 300 carbon steel, full-port, live-loaded split-body ball valve with flanged connection. Suitable for steam service and compliant with industry standards.

Product Information

Standard Information

• Brand: VELAN
• Manufacturer Part Number: F14-11402-SSEX

Technical Specifications

• Sub Brand: Memoryseal™
• Item Name: Ball Valve
• Type: Full-Port, Live Loaded, Split-Body
• Nominal Size: 6 IN
• Connection Type: Flanged
• Pressure Rating: 100 - 740 PSI
• Pressure Class: Class 300
• Temperature Rating: 100 - 450 DEG F
• Body Material: Carbon Steel
• Operator Type: Lever Handle
• Handle Material: Malleable Iron
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: PTFE
• Gland Material: 304 Stainless Steel
• Seat Material: MPTFE
• Seal Material: MPTFE
• Material Standard: Body: ASTM A105 Grade WCB, Stem: ASTM A276
• Industry Standards: ASME B16.5, ASME B16.10, ASME B16.34, API 608, API 598, API 607 Rev. 5/ISO 10497, UL Listed
• Width: 15-1/2 IN
• Lead Free: No
• Other Physical Dimension: 12-1/2 IN Flange Diameter, 12.56 IN Inlet Center To Top Of Handle
• Additional Specifications: Flow Co-Efficient (Cv): 5500
• Brand: Velan
• Firesafe: No
