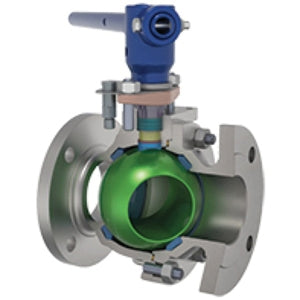

Velan F10-10402-SSEX Flgd Split Body Live Loaded Ball Valve W/Lever Handle

Brand: VELAN
SKU: F10-10402-SSEX
Availability: In Stock

Ships same day if ordered by 12 pm
$1,701.35
$1,701.35
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Velan F10-10402-SSEX is a flanged split body live loaded ball valve with a lever handle. This Memoryseal™ split-body resilient-seated ball valve is designed for a range of applications. It features MPTFE seats and graphite packing, suitable for steam service up to 150 PSIG. Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards.

  • Designed to handle an extensive range of applications
  • Standard valves with MPTFE seats and graphite packing can handle steam service up to 150 PSIG (10.3 BAR)
  • Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards

Product Highlights

This Velan ball valve features a split-body, resilient seat, and is suitable for various applications, including steam service. It meets industry standards for performance and emissions.

Product Information

Standard Information

  • Brand: VELAN
  • Manufacturer Part Number: F10-10402-SSEX
Technical Specifications
MPN
F10-10402-SSEX
Brand
VELAN
Sub Brand
Memoryseal™
Item Name
Ball Valve
Type
Regular Port, Live Loaded, Split-Body
Nominal Size
3 IN
Connection Type
Flanged
Pressure Class
Class 300
Temperature Rating
100 - 450 DEG F
Body Material
Carbon Steel
Operator Type
Lever Handle
Handle Material
Malleable Iron
Stem Material
316 Stainless Steel
Trim Material
316 Stainless Steel Ball
Packing Material
PTFE
Gland Material
304 Stainless Steel
Seat Material
MPTFE
Seal Material
MPTFE
Material Standard
Body: ASTM A105 Grade WCB, Stem: ASTM A276
Industry Standards
ASME B16.5, ASME B16.10, ASME B16.34, API 608, API 598, API 607 Rev. 5/ISO 10497, UL Listed
Width
11.12 IN
Lead Free
No
Other Physical Dimension
5.44 IN Inlet Center To Top Of Handle, 10.38 IN Handle Length
Additional Specifications
Flow Co-Efficient (Cv): 250
Firesafe
No
