VELAN Velan F10-10302-SSEX Flgd Unibody Live Loaded Ball Valve W/Lever Handle 3 IN
VELAN Velan F10-10302-SSEX Flgd Unibody Live Loaded Ball Valve W/Lever Handle 3 IN

Velan F10-10302-SSEX Flgd Unibody Live Loaded Ball Valve W/Lever Handle 3 IN

Brand: VELAN
SKU: F10-10302-SSEX
Availability: In Stock

Ships same day if ordered by 12 pm
$2,062.24
$2,062.24
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

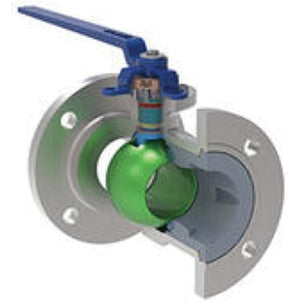

The VELAN F10-10302-SSEX is a flanged unibody live loaded ball valve with a lever handle. This Memoryseal™ resilient-seated ball valve features a 3-way packing arrangement for stem sealing and handles a range of applications. Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards. The valve meets NACE specifications.

  • Designed with unique 3-way packing arrangements for superior stem sealing
  • Handle an extensive range of applications
  • Meet NACE specifications

Product Highlights

Flanged unibody live loaded ball valve with lever handle, Memoryseal™ design, and compliant with API and ISO standards.

Product Information

Standard Information

  • Brand: VELAN
  • Manufacturer Part Number: F10-10302-SSEX
Technical Specifications
Sub Brand
Memoryseal™
Item Name
Ball Valve
Type
Regular Port, Live Loaded, Uni-Body
Nominal Size
3 IN
Connection Type
Flanged
Pressure Rating
100 - 740 PSI
Pressure Class
Class 300
Temperature Rating
100 - 450 DEG F
Body Material
Carbon Steel
Operator Type
Lever Handle
Handle Material
Malleable Iron
Stem Material
316 Stainless Steel
Trim Material
316 Stainless Steel Ball
Packing Material
PTFE
Gland Material
304 Stainless Steel
Seat Material
MPTFE
Seal Material
MPTFE
Material Standard
Body: ASTM A105 Grade WCB, Stem: ASTM A276
Industry Standards
ASME B16.34, BS 5351, API 608, API 607 Rev. 5/ISO 10497, ISO/CAPI
Width
11.12 IN
Lead Free
No
Other Physical Dimension
5.96 IN Inlet Center To Top Of Handle, 11.88 IN Handle Length
Additional Specifications
Flow Co-Efficient (Cv): 350
Brand
Velan
Firesafe
No
