Velan F08-11402-SSEX Memoryseal Ball Valve 2 IN Flanged

Brand: VELAN
SKU: F08-11402-SSEX
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$1,150.50
$1,150.50
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

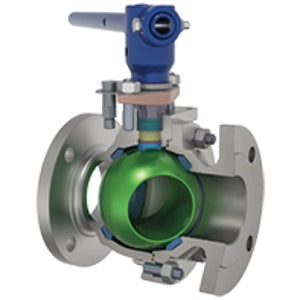

The VELAN F08-11402-SSEX Memoryseal ball valve is designed for a range of applications. This split-body resilient-seated ball valve features MPTFE seats and graphite packing, suitable for steam service up to 150 PSIG. Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards.

  • Full-Port, Live Loaded, Split-Body ball valve
  • Features a lever handle for operation
  • Body made of carbon steel with 316 stainless steel stem and ball

Product Highlights

This Velan Memoryseal ball valve is a 2 inch, flanged, full-port valve designed for durability and high performance.

Product Information

Standard Information

  • Brand: VELAN
  • Manufacturer Part Number: F08-11402-SSEX

Technical Specifications

  • MPN: F08-11402-SSEX
  • Brand: VELAN
  • Sub Brand: Memoryseal™
  • Item Name: Ball Valve
  • Type: Full-Port, Live Loaded, Split-Body
  • Nominal Size: 2 IN
  • Connection Type: Flanged
  • Pressure Rating: 100 - 740 PSI
  • Pressure Class: Class 300
  • Temperature Rating: 100 - 450 DEG F
  • Body Material: Carbon Steel
  • Operator Type: Lever Handle
  • Handle Material: Malleable Iron
  • Stem Material: 316 Stainless Steel
  • Trim Material: 316 Stainless Steel Ball
  • Packing Material: PTFE
  • Gland Material: 304 Stainless Steel
  • Seat Material: MPTFE
  • Seal Material: MPTFE
  • Material Standard: Body: ASTM A105 Grade WCB, Stem: ASTM A276
  • Industry Standards: ASME B16.5, ASME B16.10, ASME B16.34, API 608, API 598, API 607 Rev. 5/ISO 10497, UL Listed
  • Width: 7 IN
  • Lead Free: No
  • Other Physical Dimension: 5.44 IN Inlet Center To Top Of Handle, 10.38 IN Handle Length
  • Additional Specifications: Flow Co-Efficient (Cv): 430
  • Firesafe: No
  • End Connection 1: Flanged
  • End Connection 2: Flanged
  • End Connections: Flanged
  • FM Approved: No
  • IAPMO Listed: No
  • Material: Carbon Steel, Stainless Steel, Plastic
  • Material Type: A105, MPTFE
  • NSF Certified: No
  • Valve Body Material: Carbon Steel
  • Valve Body Style: 2 piece
  • Valve Disc Material: Stainless Steel
  • Valve Port Opening: Full Port
  • Valve Size: 2 in
