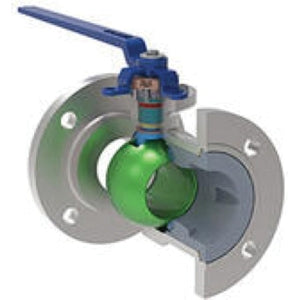

Velan F08-10302-SSEX Memoryseal Ball Valve 2 IN

Product Description

The Velan F08-10302-SSEX Memoryseal™ is a Class 300 carbon steel lever handle regular port live loaded uni-body ball valve. Designed with a unique 3-way packing arrangement for superior stem sealing across a range of applications. Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards.

• Designed with unique 3-way packing arrangements for superior stem sealing.
• Meets NACE specifications.
• Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards.

Product Highlights

The Velan Memoryseal™ ball valve features a carbon steel body, 316 stainless steel stem and ball, and a lever handle for operation.

Product Information

Standard Information

• Brand: VELAN
• Manufacturer Part Number: F08-10302-SSEX

Technical Specifications

• Sub Brand: Memoryseal™
• Item Name: Ball Valve
• Type: Regular Port, Live Loaded, Uni-Body
• Nominal Size: 2 IN
• Connection Type: Flanged
• Pressure Rating: 100 - 740 PSI
• Pressure Class: Class 300
• Temperature Rating: 100 - 450 DEG F
• Body Material: Carbon Steel
• Operator Type: Lever Handle
• Handle Material: Malleable Iron
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: PTFE
• Gland Material: 304 Stainless Steel
• Seat Material: MPTFE
• Seal Material: MPTFE
• Material Standard: Body: ASTM A105 Grade WCB, Stem: ASTM A276
• Industry Standards: ASME B16.34, BS 5351, API 608, API 607 Rev. 5/ISO 10497, ISO/CAPI
• Width: 8.5 IN
• Lead Free: No
• Other Physical Dimension: 4.59 IN Inlet Center To Top Of Handle, 9 IN Handle Length
• Additional Specifications: Flow Co-Efficient (Cv): 165
• Brand: Velan
• Firesafe: No
