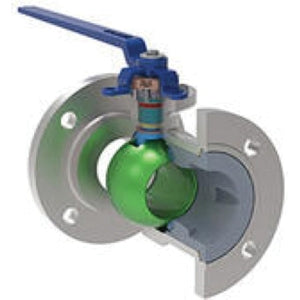

Velan F08-00313-SSEAE Memoryseal™ Ball Valve 2 IN Flanged

Product Description

The Velan F08-00313-SSEAE Memoryseal™ unibody resilient-seated ball valve is designed with 3-way packing arrangements for stem sealing across many applications. This valve meets NACE specifications and is compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards.

• Designed with unique 3-way packing arrangements for superior stem sealing
• Handles an extensive range of applications
• Meets NACE specifications

Product Highlights

This Memoryseal™ ball valve features a regular port, live loaded, uni-body standard design with a flanged connection and a class 150 pressure rating.

Product Information

Standard Information

• Brand: VELAN
• Manufacturer Part Number: F08-00313-SSEAE

Technical Specifications

• Sub Brand: Memoryseal™
• Item Name: Ball Valve
• Type: Regular Port, Live Loaded, Uni-Body, Standard
• Nominal Size: 2 IN
• Connection Type: Flanged
• Pressure Class: Class 150
• Temperature Rating: 100 - 450 DEG F
• Body Material: 316 Stainless Steel
• Operator Type: Lever Handle
• Handle Material: Malleable Iron
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel
• Packing Material: PTFE/Graphite
• Gland Material: 304 Stainless Steel
• Seat Material: MPTFE
• Seal Material: MPTFE
• Material Standard: Body: ASTM A351 Grade CF8M, Stem And Gland: ASTM A276
• Material Specification: Ball: 316 Stainless Steel
• Industry Standards: ASME B16.34, BS 5351, API 608, ISO 5211, API 607 rev 5/ISO 10497
• Width: 7 IN
• Lead Free: No
• Other Physical Dimension: 4.59 IN Inlet Center To Top Of Handle, 9 IN Handle Length
• Additional Specifications: Flow Co-Efficient (Cv): 165
• Brand: Velan
• Firesafe: No
• Manufacturer: Velan
• Manfucturer's Part #: F0800313SSEAE
