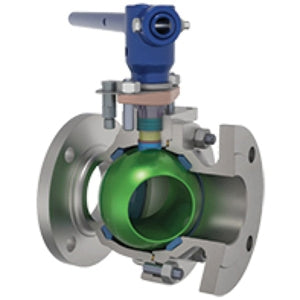

Velan F07-11402-SSEX Ball Valve 1-1/2 IN

Product Description

The VELAN F07-11402-SSEX is a Class 300 carbon steel lever handle full-port live loaded split-body ball valve. This flanged valve is designed to handle an extensive range of applications. Standard valves with MPTFE seats and graphite packing can handle steam service up to 150 PSIG (10.3 BAR).

• Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards
• Valves with carbon graphite filled PTFE seats are suitable for steam up to 250 PSIG (17.2 BAR)
• Meets NACE specifications

Product Highlights

The Velan Memoryseal™ split-body resilient-seated ball valve features a 316 stainless steel ball and stem, and MPTFE seat and seal material.

Product Information

Standard Information

• Brand: VELAN
• Manufacturer Part Number: F07-11402-SSEX

Technical Specifications

• Sub Brand: Memoryseal™
• Item Name: Ball Valve
• Type: Full-Port, Live Loaded, Split-Body
• Nominal Size: 1-1/2 IN
• Connection Type: Flanged
• Pressure Rating: 100 - 740 PSI
• Pressure Class: Class 300
• Temperature Rating: 100 - 450 DEG F
• Body Material: Carbon Steel
• Operator Type: Lever Handle
• Handle Material: Stainless Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: PTFE
• Gland Material: 304 Stainless Steel
• Seat Material: MPTFE
• Seal Material: MPTFE
• Material Standard: Body: ASTM A105 Grade WCB, Stem: ASTM A276
• Industry Standards: ASME B16.5, ASME B16.10, ASME B16.34, API 608, API 598, API 607 Rev. 5/ISO 10497, UL Listed
• Width: 6-1/2 IN
• Lead Free: No
• Other Physical Dimension: 6.13 IN Flange Diameter, 5.02 IN Inlet Center To Top Of Handle, 7.69 IN Handle Length
• Additional Specifications: Flow Co-Efficient (Cv): 250
• Brand: Velan
• Firesafe: No
