Product Description

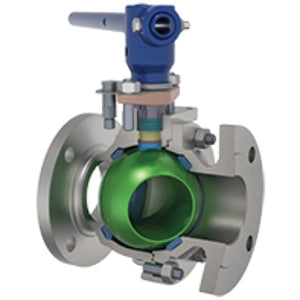

The VELAN F07-10402-SSEX Memoryseal ball valve is a Class 300 carbon steel, lever handle, regular port, live loaded, split-body ball valve with a flanged connection. Designed for a range of applications, it features MPTFE seats and graphite packing, handling steam service up to 150 PSIG. Valves with carbon graphite filled PTFE seats are suitable for steam up to 250 PSIG.
- Designed to handle an extensive range of applications
- Compliant with API 608
- Dual qualified to API 641 and ISO 15848-1 fugitive emissions standards
Product Highlights
This Velan Memoryseal ball valve meets NACE specifications and is suitable for steam applications. It is compliant with industry standards.
Product Information
Standard Information
-
Brand: VELAN
-
Manufacturer Part Number: F07-10402-SSEX
Technical Specifications
-
Sub Brand: Memoryseal™
-
Item Name: Ball Valve
-
Type: Regular Port, Live Loaded, Split-Body
-
Nominal Size: 1-1/2 IN
-
Connection Type: Flanged
-
Pressure Class: Class 300
-
Temperature Rating: 100 - 450 DEG F
-
Body Material: Carbon Steel
-
Operator Type: Lever Handle
-
Handle Material: Stainless Steel
-
Stem Material: 316 Stainless Steel
-
Trim Material: 316 Stainless Steel Ball
-
Packing Material: PTFE
-
Gland Material: 304 Stainless Steel
-
Seat Material: MPTFE
-
Seal Material: MPTFE
-
Material Standard: Body: ASTM A105 Grade WCB, Stem: ASTM A276
-
Industry Standards: ASME B16.5, ASME B16.10, ASME B16.34, API 608, API 598, API 607 Rev. 5/ISO 10497, UL Listed
-
Lead Free: No
-
Brand: Velan
-
Firesafe: No
