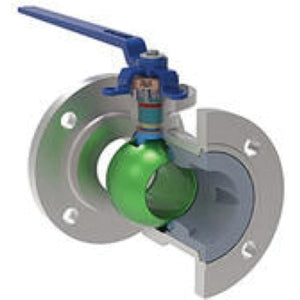

Velan F07-10302-SSEX Memoryseal Ball Valve 1-1/2 IN

Product Description

The VELAN F07-10302-SSEX Memoryseal ball valve is designed with 3-way packing arrangements for stem sealing across applications. This unibody resilient-seated ball valve meets NACE specifications and is compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards. It features a carbon steel body and a lever handle.

• Designed with unique 3-way packing arrangements for superior stem sealing
• Meets NACE specifications
• Compliant with API 608

Product Highlights

The VELAN Memoryseal ball valve offers superior stem sealing and meets industry standards. It is suitable for a range of applications.

Product Information

Standard Information

• Brand: VELAN
• Manufacturer Part Number: F07-10302-SSEX

Technical Specifications

• Sub Brand: Memoryseal™
• Item Name: Ball Valve
• Type: Regular Port, Live Loaded, Uni-Body
• Nominal Size: 1-1/2 IN
• Connection Type: Flanged
• Pressure Rating: 100 - 740 PSI
• Pressure Class: Class 300
• Temperature Rating: 100 - 450 DEG F
• Body Material: Carbon Steel
• Operator Type: Lever Handle
• Handle Material: 304 Stainless Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: PTFE
• Gland Material: 304 Stainless Steel
• Seat Material: MPTFE
• Seal Material: MPTFE
• Material Standard: Body: ASTM A105 Grade WCB, Stem: ASTM A276
• Industry Standards: ASME B16.34, BS 5351, API 608, API 607 Rev. 5/ISO 10497, ISO/CAPI
• Width: 7-1/2 IN
• Lead Free: No
• Other Physical Dimension: 4.89 IN Inlet Center To Top Of Handle, 7.80 IN Handle Length
• Additional Specifications: Flow Co-Efficient (Cv): 125
• Brand: Velan
• Firesafe: No
