Velan F05-11402-SSEX Ball Valve 1 IN Flanged

Product Description

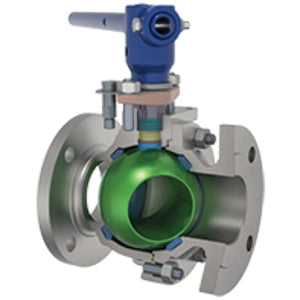

The VELAN F05-11402-SSEX is a flanged ball valve. This Memoryseal™ split-body resilient-seated ball valve is designed to handle an extensive range of applications. It features a carbon steel body, stainless steel stem and handle, and MPTFE seats and seals. Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards.

• Full-Port, Live Loaded, Split-Body
• Handle Material: Stainless Steel
• Stem Material: 316 Stainless Steel

Product Highlights

The VELAN F05-11402-SSEX ball valve is suitable for use in a variety of applications. It is a reliable and durable valve that is designed to provide long-lasting performance.

Product Information

Standard Information

• Brand: VELAN
• Manufacturer Part Number: F05-11402-SSEX

Technical Specifications

• Sub Brand: Memoryseal™
• Item Name: Ball Valve
• Type: Full-Port, Live Loaded, Split-Body
• Nominal Size: 1 IN
• Connection Type: Flanged
• Pressure Rating: 100 - 740 PSI
• Pressure Class: Class 300
• Temperature Rating: 100 - 450 DEG F
• Body Material: Carbon Steel
• Operator Type: Oval Handle
• Handle Material: Stainless Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: PTFE
• Gland Material: 304 Stainless Steel
• Seat Material: MPTFE
• Seal Material: MPTFE
• Material Standard: Body: ASTM A105 Grade WCB, Stem: ASTM A276
• Industry Standards: ASME B16.5, ASME B16.10, ASME B16.34, API 608, API 598, API 607 Rev. 5/ISO 10497, UL Listed
• Width: 6-1/2 IN
• Lead Free: No
• Other Physical Dimension: 4.88 IN Flange Diameter, 4.02 IN Inlet Center To Top Of Handle, 5.56 IN Handle Length
• Additional Specifications: Flow Co-Efficient (Cv): 100
• Brand: Velan
• Firesafe: No
