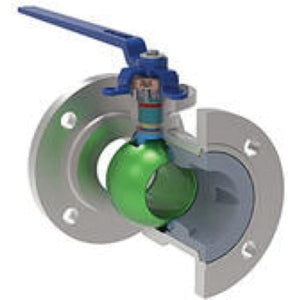

Velan F05-00313-SSEAE-H Memoryseal Ball Valve 1 IN

Product Description

The Velan F05-00313-SSEAE-H Memoryseal ball valve is a Class 150 316 stainless steel, flanged unibody valve with an oval handle. This standard ball valve features a regular port and live loading. It is designed with unique 3-way packing arrangements for superior stem sealing to handle an extensive range of applications.

• Flanged connection
• Unibody design
• Live loaded
• Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards

Product Highlights

The Velan Memoryseal ball valve is a rugged, versatile, and high-performance valve that meets NACE specifications.

Product Information

Standard Information

• Brand: VELAN
• Manufacturer Part Number: F05-00313-SSEAE-H

Technical Specifications

• Sub Brand: Memoryseal™
• Item Name: Ball Valve
• Type: Regular Port, Live Loaded, Uni-Body, Standard
• Nominal Size: 1 IN
• Connection Type: Flanged
• Pressure Class: Class 150
• Temperature Rating: 100 - 450 DEG F
• Body Material: 316 Stainless Steel
• Operator Type: Oval Handle
• Handle Material: 304 Stainless Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel
• Packing Material: PTFE/Graphite
• Gland Material: 304 Stainless Steel
• Seat Material: MPTFE
• Seal Material: MPTFE
• Material Standard: Body: ASTM A351 Grade CF8M, Stem And Gland: ASTM A276
• Material Specification: Ball: 316 Stainless Steel
• Industry Standards: ASME B16.34, BS 5351, API 608, ISO 5211, API 607 rev 5/ISO 10497
• Width: 5 IN
• Lead Free: No
• Other Physical Dimension: 3.91 IN Inlet Center To Top Of Handle, 7.8 IN Handle Length
• Additional Specifications: Flow Co-Efficient (Cv): 42
• Brand: Velan
• Firesafe: No
