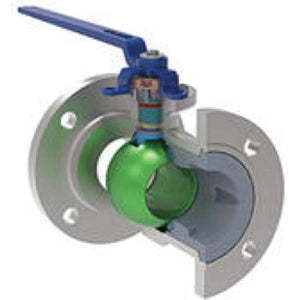

Velan F04-10302-SSEX-H flgd 300 uni ball valve

Product Description

The Velan F04-10302-SSEX-H is a FLGD 300 UNI ball valve with a carbon steel body and stainless steel trim. It features a live loaded MPTFE seat, oval handle, and is fire-tested to API 607 standards. This Memoryseal™ unibody resilient-seated ball valve is designed with a 3-way packing arrangement for superior stem sealing.

• Features a live loaded MPTFE seat for reliable sealing.
• Equipped with an oval handle for manual operation.
• Fire-tested to API 607 standards for safety.

Product Highlights

This Velan ball valve is ideal for applications requiring a resilient-seated valve with robust stem sealing and fire-safe design.

Product Information

Standard Information

• Brand: VELAN
• Manufacturer Part Number: F04-10302-SSEX-H

Technical Specifications

• Item Name: Ball Valve
• Type: Regular Port, Live Loaded, Uni-Body
• Nominal Size: 3/4 IN
• Connection Type: Flanged
• Pressure Rating: 100 - 740 PSI
• Pressure Class: Class 300
• Temperature Rating: 100 - 450 DEG F
• Body Material: Carbon Steel
• Operator Type: Oval Handle
• Handle Material: 304 Stainless Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: PTFE
• Gland Material: 304 Stainless Steel
• Seat Material: MPTFE
• Seal Material: MPTFE
• Material Standard: Body: ASTM A105 Grade WCB, Stem: ASTM A276
• Industry Standards: ASME B16.5, ASME B16.10, ASME B16.34, API 608, API 598, API 607 Rev. 5/ISO 10497, UL Listed
• Width: 6 IN
• Lead Free: No
• Other Physical Dimension: 3.79 IN Inlet Center To Top Of Handle, 5.9 IN Handle Length
• Additional Specifications: Flow Co-Efficient (Cv): 15
• Brand: Velan
• Firesafe: No
• Sub Brand: Memoryseal™
