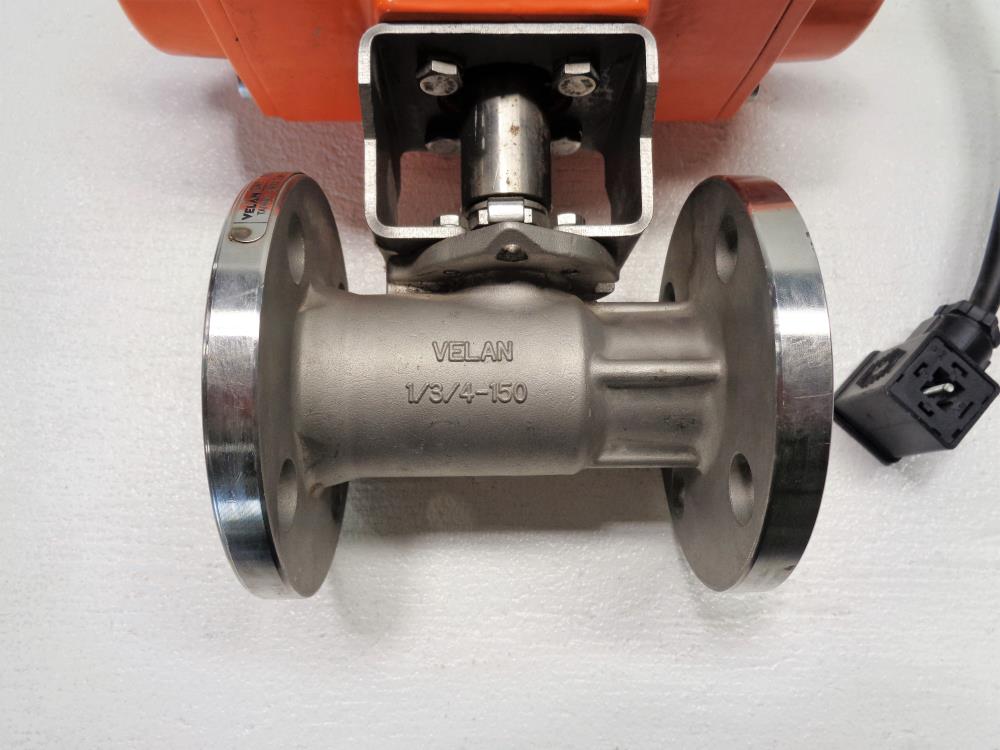

Velan F04-00313-SSEAE Flgd Unibody Live Loaded Ball Valve W/Lever Handle 3/4 IN

Product Description

The VELAN F04-00313-SSEAE is a flanged unibody live loaded ball valve with a lever handle. This Memoryseal™ ball valve features a regular port, live loaded, uni-body standard design. It is constructed with 316 stainless steel body material and is suitable for use with a temperature rating of 100 - 450 DEG F.

• Designed with unique 3-way packing arrangements for superior stem sealing.
• Meets NACE specifications.
• Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards.

Product Highlights

This 3/4 IN Velan ball valve is ideal for applications requiring a durable and high-performance valve.

Product Information

Standard Information

• Brand: VELAN
• Manufacturer Part Number: F04-00313-SSEAE

Technical Specifications

• Sub Brand: Memoryseal™
• Item Name: Ball Valve
• Type: Regular Port, Live Loaded, Uni-Body, Standard
• Nominal Size: 3/4 IN

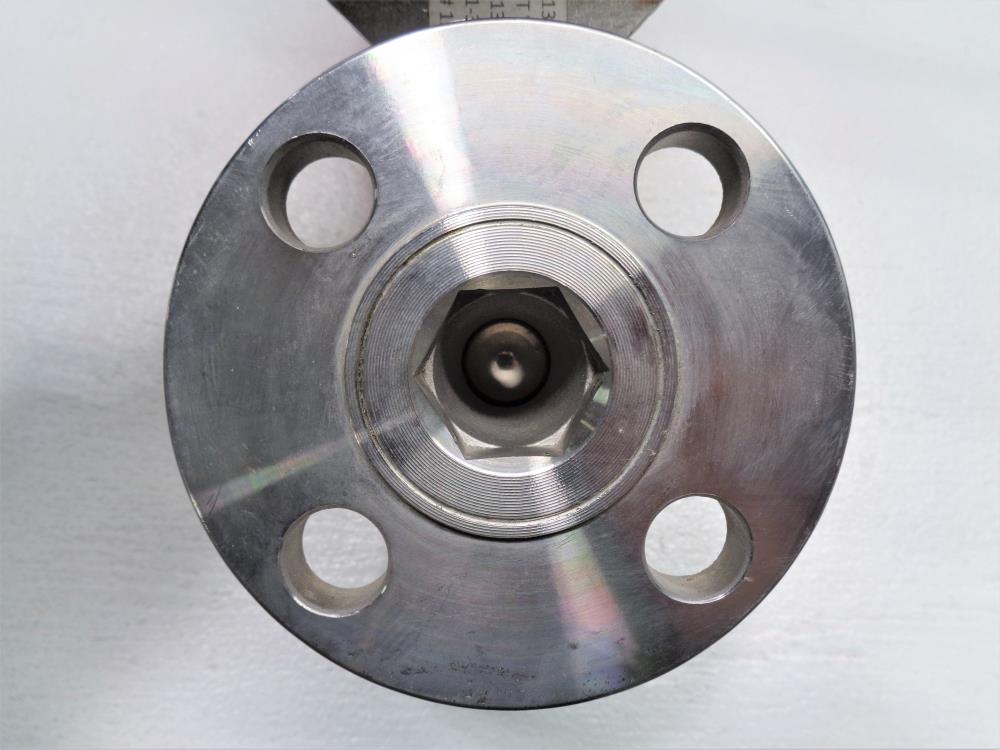

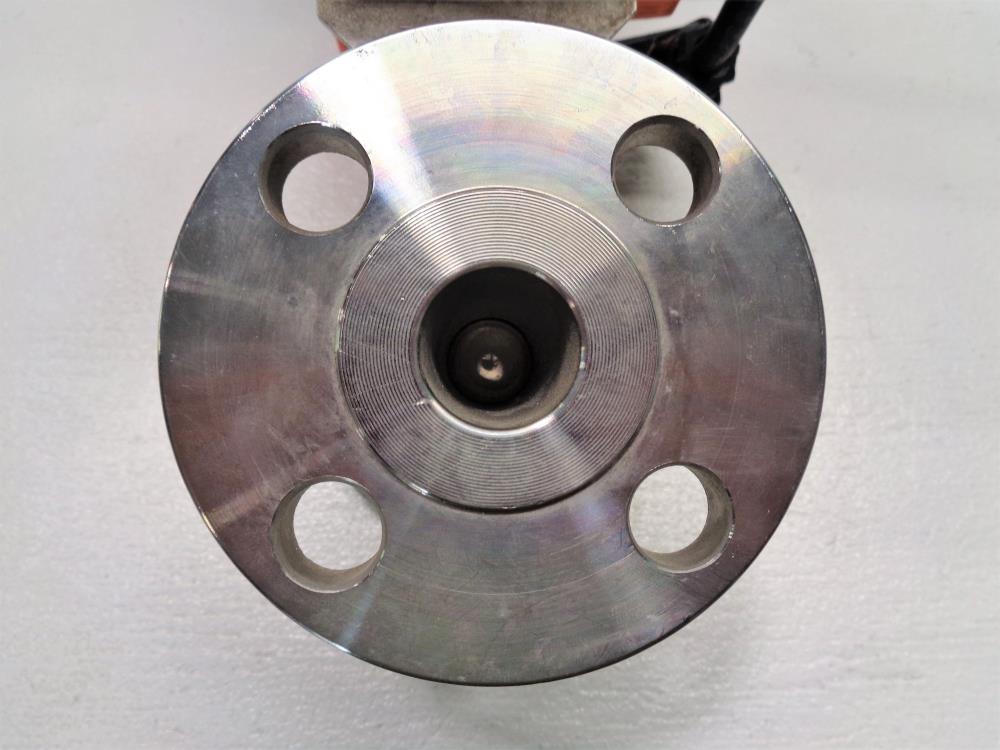

• Connection Type: Flanged
• Pressure Class: Class 150
• Temperature Rating: 100 - 450 DEG F
• Body Material: 316 Stainless Steel
• Operator Type: Lever Handle
• Handle Material: 304 Stainless Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel
• Packing Material: PTFE/Graphite
• Gland Material: 304 Stainless Steel
• Seat Material: MPTFE
• Seal Material: MPTFE
• Material Standard: Body: ASTM A351 Grade CF8M, Stem And Gland: ASTM A276
• Material Specification: Ball: 316 Stainless Steel
• Industry Standards: ASME B16.34, BS 5351, API 608, ISO 5211, API 607 rev 5/ISO 10497
• Width: 4.62 IN
• Lead Free: No
• Other Physical Dimension: 3.79 IN Inlet Center To Top Of Handle, 5.9 IN Handle Length
• Additional Specifications: Flow Co-Efficient (Cv): 15
• Brand: Velan
• Firesafe: No

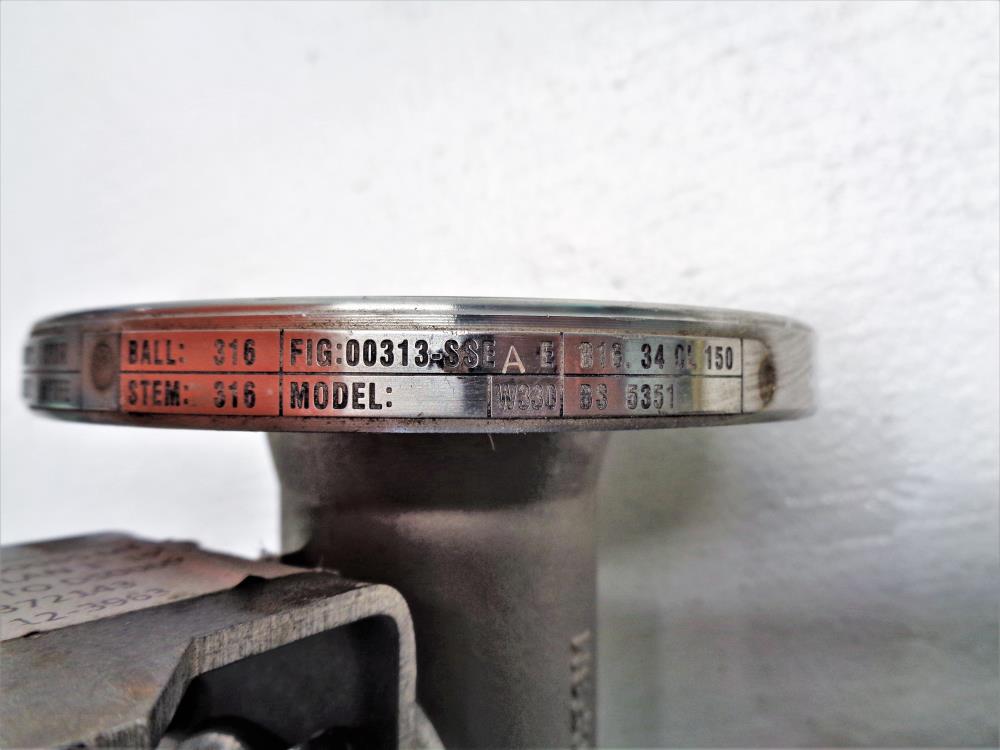

• Figure#: 00313-SSEAE
• CWP: 275 PSIG
• Max Temp: 450°F
• B16.34: B16.34
• CL: 150
• Valve, Ball & Stem Material: 316 Stainless Steel
