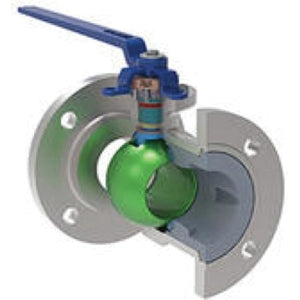

Velan F04-00302-SSEX-H flanged 150 uni ball valve

Product Description

The Velan F04-00302-SSEX-H is a Class 150 carbon steel oval handle regular port live loaded uni-body ball valve with a 3/4 IN flanged connection. Designed with a unique 3-way packing arrangement for superior stem sealing, this valve handles an extensive range of applications. It features a 316 stainless steel ball and stem, and MPTFE seat and seal material.

• Designed with unique 3-way packing arrangements for superior stem sealing.
• Meets NACE specifications.
• Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards.

Product Highlights

This Velan ball valve features a carbon steel body, stainless steel trim, and MPTFE seats, suitable for various industrial applications requiring reliable sealing and robust construction.

Product Information

Standard Information

• Brand: VELAN
• Manufacturer Part Number: F04-00302-SSEX

Technical Specifications

• Item Name: Ball Valve
• Type: Regular Port, Live Loaded, Uni-Body
• Nominal Size: 3/4 IN
• Connection Type: Flanged
• Pressure Rating: 100 - 285 PSI
• Pressure Class: Class 150
• Temperature Rating: 100 - 450 DEG F
• Body Material: Carbon Steel
• Operator Type: Oval Handle
• Handle Material: 304 Stainless Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: PTFE
• Gland Material: 304 Stainless Steel
• Seat Material: MPTFE
• Seal Material: MPTFE
• Material Standard: Body: ASTM A105 Grade WCB, Stem: ASTM A276
• Industry Standards: ASME B16.34, BS 5351, API 608, API 607 Rev. 5/ISO 10497, ISO/CAPI
• Width: 4.62 IN
• Lead Free: No
• Other Physical Dimension: 3.79 IN Inlet Center To Top Of Handle, 5.9 IN Handle Length
• Additional Specifications: Flow Co-Efficient (Cv): 15
• Brand: Velan
• Firesafe: No
