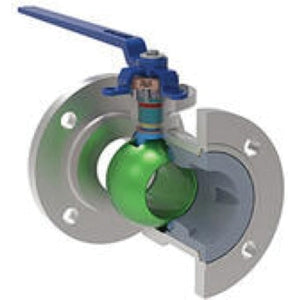

Velan F03-10302-SSEX-H 1/2 flgd 300 uni cs/ss sp live loaded mptfe ball valve oval handle fire-tested api 607

Product Description

The Velan F03-10302-SSEX-H is a 1/2 inch flanged ball valve. This Class 300 carbon steel oval handle regular port live loaded uni-body ball valve is fire-tested to API 607. It features CS/SS SP and live loaded MPTFE.

• FLGD 300 UNI
• CS/SS SP
• Live Loaded MPTFE Ball Valve

Product Highlights

This Velan Memoryseal™ ball valve is designed for superior stem sealing and handles a range of applications. It meets NACE specifications and is compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards.

Product Information

Standard Information

• Brand: VELAN
• Manufacturer Part Number: F03-10302-SSEX-H

Technical Specifications

• Sub Brand: Memoryseal™
• Item Name: Ball Valve
• Type: Regular Port, Live Loaded, Uni-Body
• Nominal Size: 1/2 IN
• Connection Type: Flanged
• Pressure Rating: 100 - 740 PSI
• Pressure Class: Class 300
• Temperature Rating: 100 - 450 DEG F
• Body Material: Carbon Steel
• Operator Type: Oval Handle
• Handle Material: 304 Stainless Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: PTFE
• Gland Material: 304 Stainless Steel
• Seat Material: MPTFE
• Seal Material: MPTFE
• Material Standard: Body: ASTM A105 Grade WCB, Stem: ASTM A276
• Industry Standards: ASME B16.5, ASME B16.10, ASME B16.34, API 608, API 598, API 607 Rev. 5/ISO 10497, UL Listed
• Width: 5-1/2 IN
• Lead Free: No
• Other Physical Dimension: 3.45 IN Inlet Center To Top Of Handle, 5.9 IN Handle Length
• Additional Specifications: Flow Co-Efficient (Cv): 9
• Brand: Velan
• Firesafe: Yes
