Velan F03-01402-SSEX-H Ball Valve 1/2 IN

Product Description

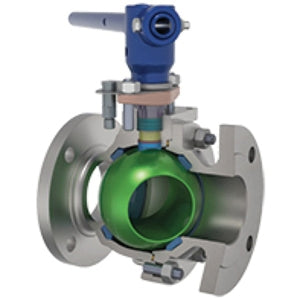

The VELAN F03-01402-SSEX-H is a Class 150 carbon steel, full-port, live loaded, split-body ball valve with an oval handle. This Memoryseal™ ball valve is flanged and designed for a range of applications. It features a 316 stainless steel stem and ball, with MPTFE seats and seals.

• Designed to handle an extensive range of applications.
• Compliant with API 608 and dual qualified to API 641 and ISO 15848-1 fugitive emissions standards.
• Suitable for steam up to 250 PSIG (17.2 BAR) with carbon graphite filled PTFE seats.

Product Highlights

The VELAN F03-01402-SSEX-H ball valve features a carbon steel body, stainless steel components, and MPTFE seals, suitable for demanding applications.

Product Information

Standard Information

• Brand: VELAN
• Manufacturer Part Number: F03-01402-SSEX-H

Technical Specifications

• Sub Brand: Memoryseal™
• Item Name: Ball Valve
• Type: Full-Port, Live Loaded, Split-Body
• Nominal Size: 1/2 IN
• Connection Type: Flanged
• Pressure Rating: 100 - 285 PSI
• Pressure Class: Class 150
• Temperature Rating: 100 - 450 DEG F
• Body Material: Carbon Steel
• Operator Type: Oval Handle
• Handle Material: Stainless Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: PTFE
• Gland Material: 304 Stainless Steel
• Seat Material: MPTFE
• Seal Material: MPTFE
• Material Standard: Body: ASTM A105 Grade WCB, Stem: ASTM A276
• Industry Standards: ASME B16.5, ASME B16.10, ASME B16.34, API 608, API 598, API 607 Rev. 5/ISO 10497, UL Listed
• Width: 4-1/4 IN
• Lead Free: No
• Other Physical Dimension: 3.27 IN Inlet Center To Top Of Handle, 5.27 IN Handle Length
• Additional Specifications: Flow Co-Efficient (Cv): 12
