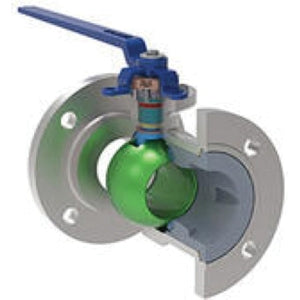

Velan F03-00302-SSEX flanged unibody live loaded ball valve w/lever handle 1/2

Product Description

The VELAN F03-00302-SSEX is a flanged unibody live loaded ball valve with a lever handle. Designed with unique 3-way packing arrangements for superior stem sealing, this valve handles an extensive range of applications. It is rugged, versatile, and high-performance, meeting NACE specifications and compliant with API 608. Dual qualified to API 641 and ISO 15848-1 fugitive emissions standards.

• Designed with unique 3-way packing arrangements for superior stem sealing
• Handles an extensive range of applications
• Rugged, versatile, and high-performance

Product Highlights

This flanged unibody ball valve features live loading and a lever handle, suitable for a range of applications requiring robust stem sealing.

Product Information

Standard Information

• Brand: VELAN
• Manufacturer Part Number: F03-00302-SSEX

Technical Specifications

• Item Name: Ball Valve
• Type: Regular Port, Live Loaded, Uni-Body
• Nominal Size: 3/4 IN
• Connection Type: Flanged
• Pressure Rating: 100 - 285 PSI
• Pressure Class: Class 150
• Temperature Rating: 100 - 450 DEG F
• Body Material: Carbon Steel
• Operator Type: Lever Handle
• Handle Material: 304 Stainless Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: MPTFE
• Gland Material: 304 Stainless Steel
• Seat Material: MPTFE
• Seal Material: MPTFE
• Material Standard: Body: ASTM A105 Grade WCB, Stem: ASTM A276
• Industry Standards: ASME B16.5, ASME B16.10, ASME B16.34, API 608, API 598, API 607 Rev. 5/ISO 10497, UL Listed
• Width: 4.62 IN
• Lead Free: No
• Other Physical Dimension: 3.79 IN Inlet Center To Top Of Handle, 5.9 IN Handle Length
• Additional Specifications: Flow Co-Efficient (Cv): 15
• Brand: Velan
• Firesafe: No
