Zebra Instruments VZ-7 Variable Speed Zebra ECM Diagnostics

Product Description

The Zebra Instruments VZ-7 is a microprocessor-controlled diagnostic device created to simplify the testing and troubleshooting of variable speed ECM motors. Ideal for technical professionals in HVAC and electrical fields, this robust tool accommodates complex diagnostics with just four switches.

• Enables in-depth system analysis including RPM and CFM readings.
• Visual monitoring and interruption of circuit board signals.
• Durable, rugged design with an organized carry case.

Product Highlights

Equipped with a visual display for monitoring motor operation and analyzing system taps to confirm correct setup. Provides direct readouts of control voltage to prevent erratic operations.

Product Information

Standard Information

• Brand: Zebra Instruments
• MPN: VZ-7
• Category: Circuit Tracers & Analyzers
• Usage: Designed for HVAC professionals.

Technical Specifications

• Control: Microprocessor-based with four operational switches.

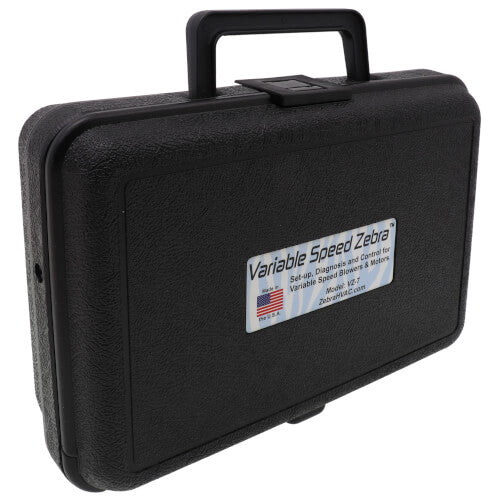

• Case Features: Rugged with handle and lead storage.
• Instructional Support: Access to online tutorial videos.
• Manufacturing Insight: 41% of motors analyzed have no detectable issues, emphasizing diagnostic accuracy.
