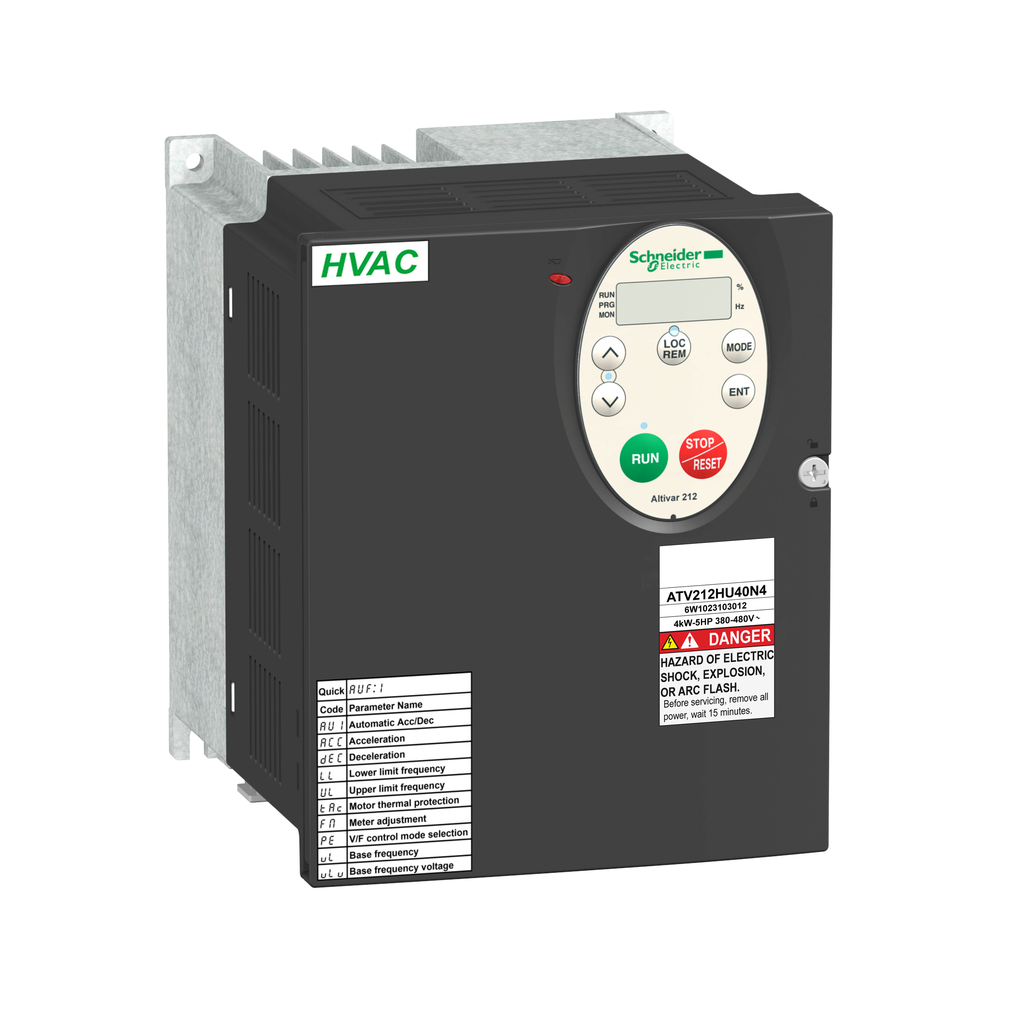

Schneider Electric ATV212HU40N4 Variable Speed Drive 5 Hp 480V 3 Phase

Product Description

The Schneider Electric ATV212HU40N4 is a variable speed drive designed for 3-phase asynchronous motors. It operates within a voltage range of 380V to 480V AC, delivering up to 5 horsepower. This drive features a built-in EMC filter and an IP21 protection index. The design focuses on energy efficiency, reducing consumption by up to seventy percent compared to traditional systems.

• Rated power of 4 kW / 5 hp
• Compatible with fluid management applications like HVAC
• Supports communication protocols including Modbus and BACnet

Product Highlights

The ATV212 drive is ideal for HVAC applications such as heating, ventilation, and air conditioning. It is engineered to handle the demands of pumps and fans effectively. The unit supports easy installation with its vertical design and multiple communication options for building management systems.

Product Information

Standard Information

• MPN: ATV212HU40N4
• Brand: Schneider Electric

Technical Specifications

• Dimensions: 142 mm (width) x 184 mm (height) x 150 mm (depth)
• Weight: 3.35 kg (7.39 lb)
• Input Voltage: 380...480 V
• Output Voltage: Equal to input voltage for 3-phase
• Input Type: 3 Phase
• Applications: Asynchronous motors, HVAC systems, pumps, and fans.
• Certifications: CE, UL, CSA, C-Tick, NOM
