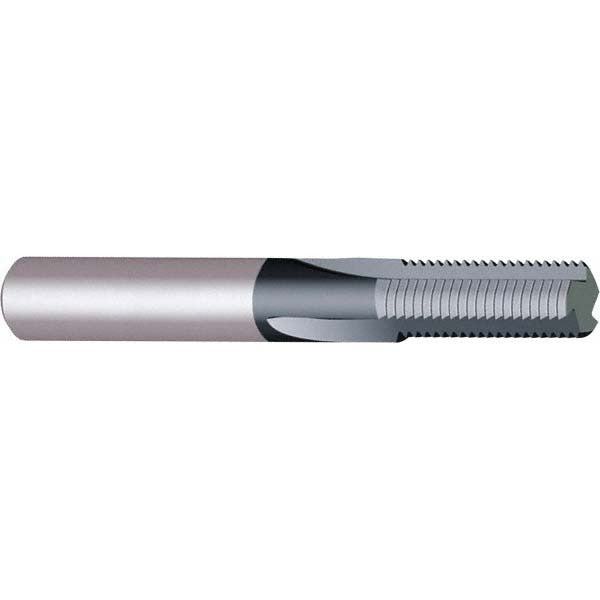

Vargus 80190 Thread Mill 1/4-18 Npt 5 Flutes Solid Carbide

Product Description

The VARGUS 80190 is a straight flute thread mill designed for cutting 1/4-18 NPT threads in both external and internal applications. Built from micrograin solid carbide and coated with TiAlN for heat and wear resistance, this tool delivers consistent thread form in demanding production environments. It runs 5 flutes at 18 teeth per inch, with a 0.31-inch cutting diameter and a 0.555-inch length of cut. The 5/16-inch shank and 2.48-inch overall length make it compatible with standard CNC machining centers. It is used primarily by machinists and tooling professionals requiring reliable NPT thread milling in a single-tool operation.

This thread mill is suited for shops producing NPT-threaded ports, fittings, and fluid-system components in ferrous and non-ferrous materials. Its solid carbide construction and TiAlN coating make it appropriate for dry or minimal-lubrication cutting strategies on CNC mills and machining centers. The straight flute geometry provides controlled chip flow and is well suited for short-chipping materials. Both external and internal thread profiles are achievable with a single tool, reducing tooling inventory in mixed-threading operations.

Key Features

• Cuts 1/4-18 NPT threads in both external and internal configurations
• 5-flute straight geometry for controlled chip evacuation in short-chipping materials
• Micrograin solid carbide construction for rigidity and extended tool life
• TiAlN coating provides oxidation resistance and improved wear performance at elevated cutting temperatures
• 5/16-inch shank diameter fits standard CNC collet and end mill holders
• No coolant-through requirement simplifies setup on standard machining centers

Compatibility

Designed for CNC thread milling of 1/4-18 NPT external and internal threads. Thread standard is NPT with a minimum nominal diameter of 1/4 inch.

Installation Notes

Thread mills must be programmed with helical interpolation on a CNC machining center. Secure the 5/16-inch shank in a properly sized collet or end mill holder torqued to the machine manufacturer specification. Confirm spindle speed and feed rate are set per the tooling manufacturer recommendations for the workpiece material before starting the cut. Do not use this tool in manual or non-CNC setups.
