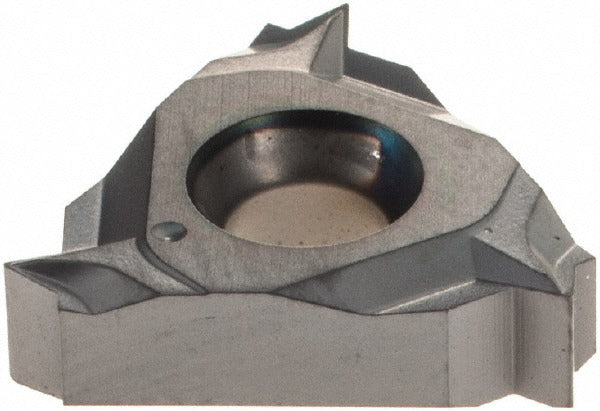

Vargus 53581 Threading Insert 14 Tpi Npt Solid Carbide

Product Description

The VARGUS 53581 is a laydown threading insert designed for cutting external NPT threads on a lathe or CNC turning center. Built from solid carbide with a TiAlN coating, this insert delivers consistent thread form and extended tool life in ferrous and non-ferrous materials. It operates at 14 threads per inch (TPI) and features a 3/8-inch inscribed circle, making it a right-hand, single-point threading tool suited to pipe thread applications. The SCB chipbreaker geometry supports controlled chip evacuation during threading passes. This insert is specified by machinists and tooling-room professionals working to NPT thread standards in production or job-shop environments.

This insert is used wherever NPT external pipe threads must be turned to standard form and fit. Typical applications include machining threaded pipe ends, fittings, and hydraulic or pneumatic components requiring tapered NPT connections. The 3JER insert style seats in compatible laydown threading toolholders. Right-hand cutting orientation suits standard lathe and CNC setups running conventional feed direction. Industries served include fluid power, plumbing fabrication, oil and gas, and general machining.

Key Features

• Solid carbide substrate provides rigidity and wear resistance for consistent thread form over extended run times
• TiAlN coating improves heat resistance and surface hardness for higher cutting speeds
• 14 TPI pitch conforms to NPT external thread standard
• 3/8-inch inscribed circle fits standard 3JER-style laydown threading toolholders
• Right-hand cutting geometry for conventional lathe and CNC turning setups
• SCB chipbreaker promotes chip control during threading passes

Compatibility

Designed for use in laydown threading toolholders that accept the 3JER insert style. Cuts to NPT external thread standard at 14 TPI. Confirm toolholder seat geometry and clamping style before installation.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Power down and lock out the machine before seating or replacing the insert. Ensure the toolholder pocket and seating surface are clean and free of chips before clamping the insert. Follow the toolholder manufacturer's clamping torque guidelines and verify thread pitch and form with a calibrated NPT thread gauge before running production parts.
