Vargus 42248 Laydown Threading Insert 20 Tpi Un Solid Carbide

Product Description

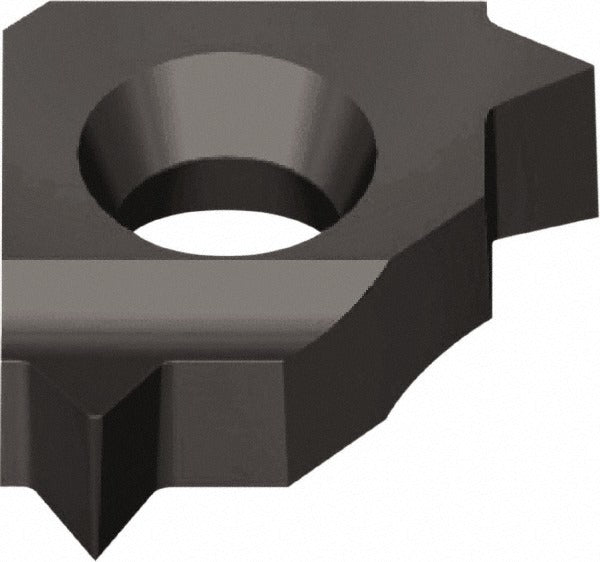

The VARGUS 42248 is a solid carbide laydown threading insert designed for internal UN thread forms on CNC lathes and threading operations. It carries a TiAlN coating applied via PVD process, giving it strong wear resistance across a wide range of workpiece materials. Built to the 5LKIR insert style in the Mini L series, it features a 5mm inscribed circle, 2.4mm thickness, a 60-degree included angle, and cuts at 20 threads per inch. This insert is installed by machinists and CNC operators running internal threading on production or job-shop turning equipment.

The 42248 is suited for internal UN thread applications following ANSI B1.1:74 standards. Its universal workpiece material compatibility makes it appropriate for use on carbon steel, stainless steel, cast iron, non-ferrous metals, high-temp alloys, and plastics. It is a right-hand cutting insert, intended for conventional right-hand internal threading passes. Typical applications include threading bores in machined components across aerospace, automotive, general manufacturing, and fluid-systems work.

Key Features

• Solid carbide substrate with PVD TiAlN coating for extended tool life
• 20 TPI for standard UN internal thread forms per ANSI B1.1:74
• 5mm inscribed circle with 2.4mm thickness in compact Mini L series profile
• 60-degree included angle matches UN thread geometry precisely
• Right-hand cut orientation for standard internal threading direction
• Universal grade VTX suitable for steel, stainless, cast iron, non-ferrous, and high-temp alloys

Compatibility

Designed for use in toolholders accepting the 5LKIR insert style within the VARGUS Mini L series internal threading system. Compatible workpiece material codes include H, K, M, N, P, and S classifications.

Installation Notes

Install and seat this insert in a compatible Mini L series internal threading toolholder before mounting the holder in the machine turret. Power down and lock out the machine before changing inserts. Use the correct torque wrench or insert key specified by the toolholder manufacturer when securing the clamping screw. Verify thread pitch and insert orientation against the job setup sheet before beginning a threading pass.
