Vanco 280535 Analog Audio over CAT5e/CAT6 Cable Extender

Product Description

The Vanco 280535 is an analog audio over CAT5e or CAT6 cable extender. It allows for the transmission of audio signals over long distances using standard Ethernet cables.

• Transmission Range: Up to six hundred meters (1968 ft)
• Choice of stereo audio or mini stereo audio via a dip switch
• Passive design, no power required for operation

Product Highlights

This extender is ideal for installations where audio needs to be transmitted over long distances without the hassle of multiple cables.

Product Information

Standard Information

• Brand: Vanco
• Manufacturer: Vanco International, Inc

Technical Specifications

• MPN: 280535
• Maximum Extended Range: 1968.50 ft
• Bandwidth: 20Hz to 20KHz (-3db)
• Dimensions: 4.25 inches W x 1 inch H x 2.8 inches D
• Audio Input: Dual gold-plated RCA female jacks or 3.5mm stereo jack
• Output: RJ45 connector
• Passive: Yes, no power required

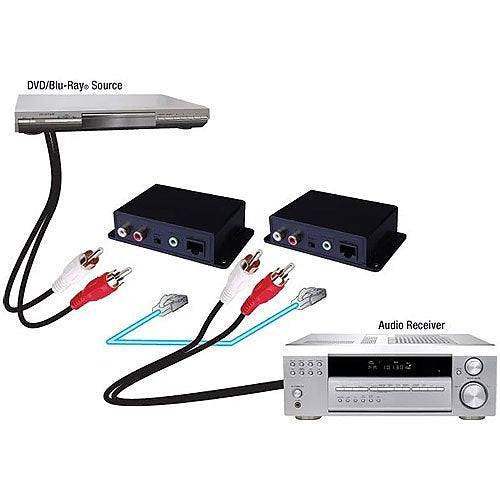

• Application: Use in pairs to transmit audio signals over CAT5 UTP cable
