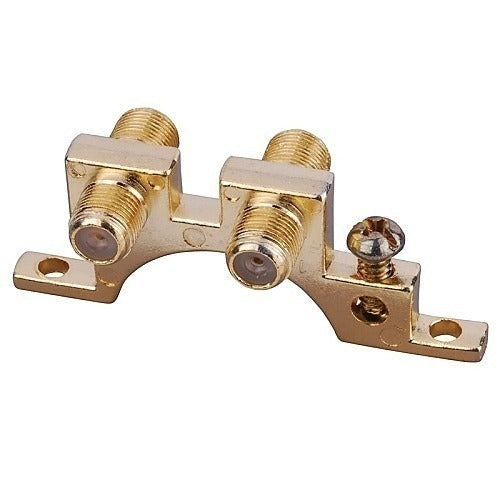

Vanco 120024 Dual F Grounding Block Gold

Product Description

The VANCO 120024 is a dual-port F-connector grounding block designed to provide a ground path for coaxial cable runs entering a structure. By bonding the coaxial shield to a ground point, this block helps protect downstream equipment from static buildup and voltage surges that travel along cable lines. It accepts two F-type coaxial connections and features gold-plated contacts for improved conductivity and corrosion resistance. Low-voltage installers and cable technicians use this component as part of a compliant coaxial entry installation.

This grounding block is suited for residential and light commercial installations where two coaxial cable runs require grounding at the point of entry. Typical applications include satellite dish feedlines, over-the-air antenna drops, and cable TV service entrances. The dual-port design allows two independent coax runs to share a single grounding block, reducing hardware count at the entry point. Installation is performed by low-voltage technicians or licensed electricians handling structured wiring work.

Key Features

• Dual F-type ports accommodate two coaxial cable runs simultaneously
• Gold-plated contacts resist corrosion and maintain reliable signal continuity
• Provides a ground bonding point for coaxial shields at building entry
• Compact form factor suited for exterior wall or grounding block mounting

Compatibility

Designed as a standard replacement or new-install grounding block for coaxial systems using F-type connectors, including satellite and antenna installations.

Installation Notes

Installation should be performed by a licensed electrician or qualified low-voltage technician in accordance with NEC Article 810 and Article 820 grounding requirements. The grounding wire must be bonded to the structure's approved ground electrode system. Ensure coaxial connections are fully seated and weatherproofed on exterior installations. De-energize any associated equipment before making connections to the block.
