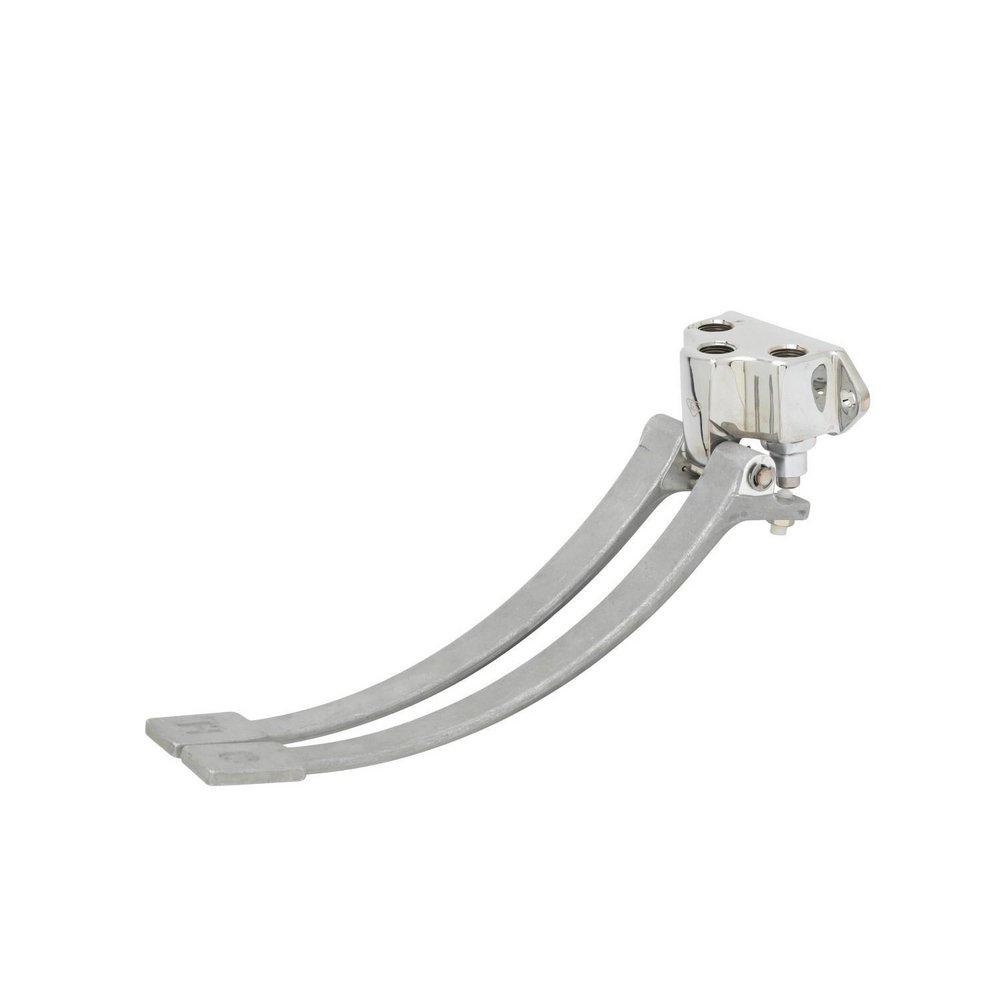

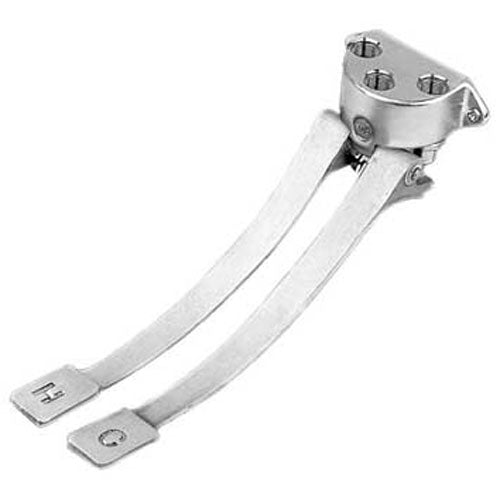

T&S Brass B-0504 Double Pedal Valve Wall Mount 1/2 NPT Inlets & Outlet

Product Description

The T&S Brass B-0504 is a double pedal valve that is designed for wall mounting. It features two inlets and an outlet with half-inch NPT connections. This valve is made from lead-free brass and has a polished chrome finish. It is suitable for various commercial applications where convenient access to hot and cold water is necessary.

• Heavy-duty construction with brass body
• Self-closing valves for efficient operation
• Designed for wall mounting to save space

Product Highlights

The double pedal valve is an excellent choice for institutional setups. The self-closing feature helps conserve water while ensuring ease of use.

Product Information

Standard Information

• Brand: T&S Brass
• MPN: B-0504

Technical Specifications

• Product Type: Pedal Valves
• Inlet Size: 1/2 inch
• Connection Type: NPT
• Finish: Polished Chrome
• Material: Brass
• Flow Rate: 12 gpm at 60 psi
• Temperature Rating: 40 - 140 deg F
• Pressure Rating: 20 - 125 psi
• Installation Type: Wall-Mount
• Warranty: One Year (Limited)
• Standards/Certifications: ASME A112.18.1, BAA/ARRA, CSA B125.1, ANSI/NSF 372 and 61 certified
