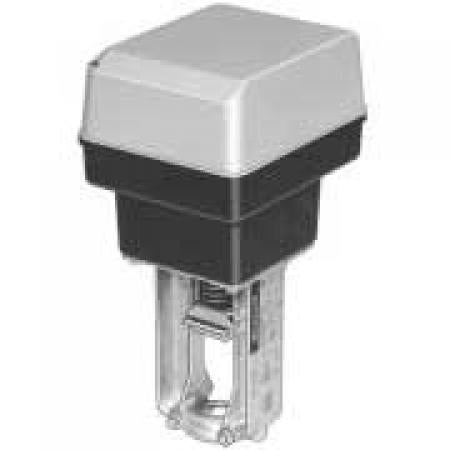

Honeywell ML6425B3013 Spring Return Direct Coupled Globe Valve Actuator 24V 3/4 Stroke 135 LBF

Product Description

The Honeywell ML6425B3013 is a reliable spring return direct coupled globe valve actuator designed for use in HVAC systems. It operates at 24V and features a 3/4 inch stroke with a 135 LBF stem force, ensuring precise control of heating, cooling, and ventilation applications.

• Floating control actuator
• SPDT output
• Stem up on power failure

Product Highlights

This actuator offers robust performance with easy installation, no separate linkage required, and accurate valve positioning. It's ideal for controlling chilled water, hot water, and steam in industrial and commercial settings.

Product Information

Standard Information

• Brand: Honeywell
• MPN: ML6425B3013

Technical Specifications

• Type: Direct-Coupled, Linear-Stroke, Valve Actuator
• Voltage: 24 Vac
• Control Signal: Floating; SPDT; On/Off switch
• Torque: 135 lbf (600 N)
• Stroke: 3/4 inch (20 mm)
• Temperature range: 14 F to 122 F (-10 C to +50 C)
• Medium Temperature: 300 F (150 C) Maximum
• Ingress Protection: IP54
• Mounting: Directly on V5011/V5013 Globe Valves and VGF Flanged Globe Valves
• Dimensions: 11 1/4 inch high x 5 5/16 inch wide x 6 5/16 inch deep
• Weight: 5.1 lb (2.3 kg)
• Power Consumption: 11 VA
