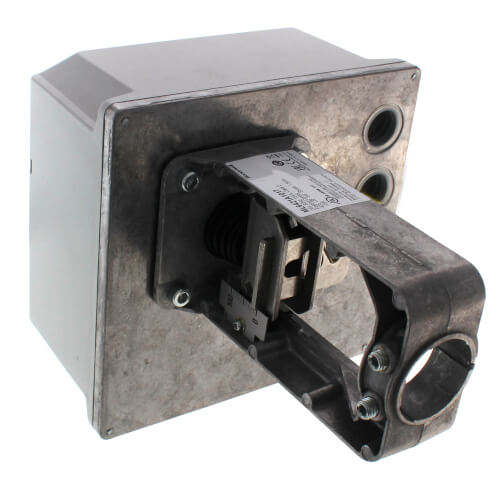

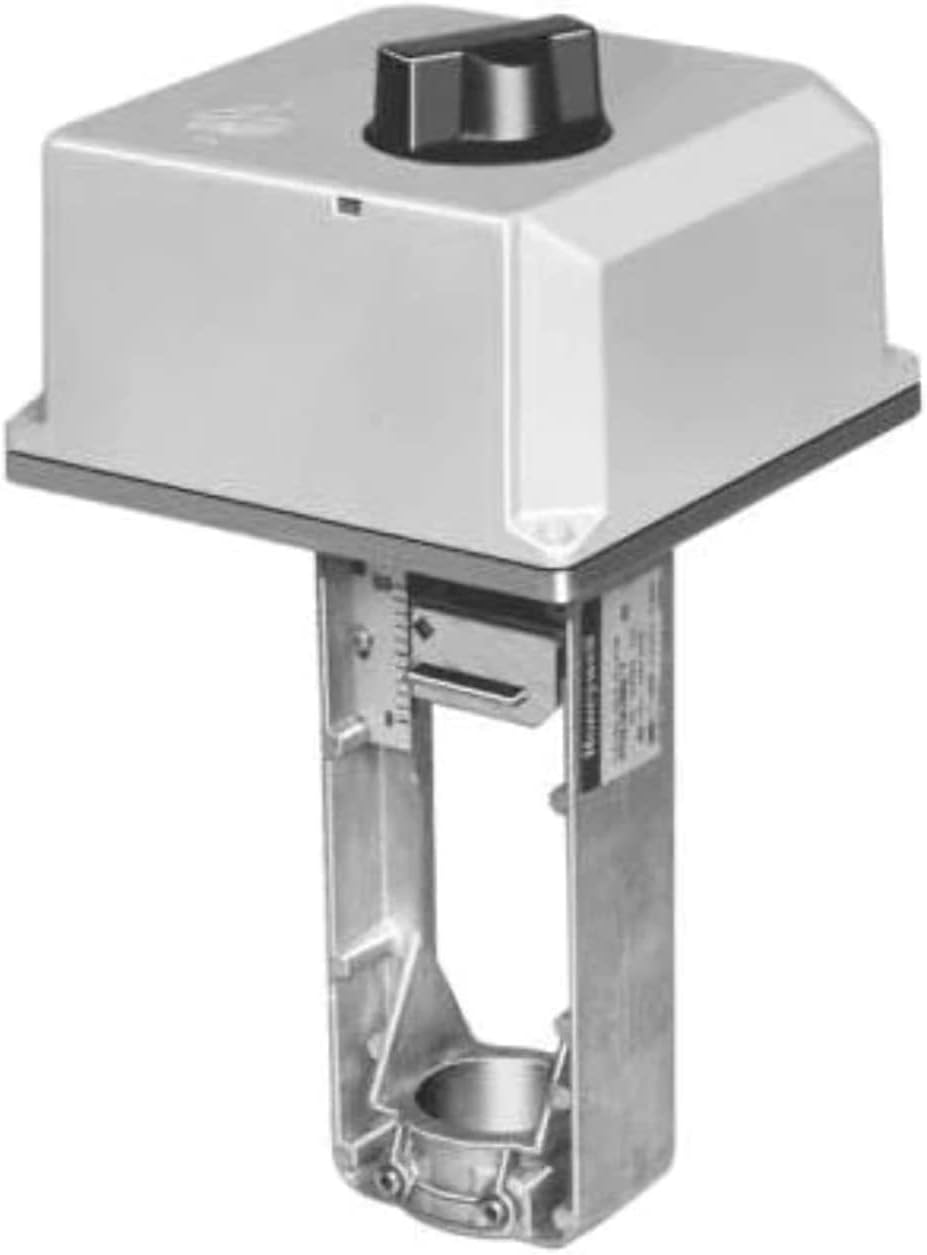

Honeywell ML6421A1017 DirMntVlvActNSR 3/4 Stroke 405 lbf

Product Description

The Honeywell ML6421A1017 is a direct mount valve actuator, providing reliable performance in various HVAC applications. This non-spring return actuator, with a 3/4 inch stroke and a force of 405 lbf, is designed to mount directly on V5011, V5013 globe valves, and VGF flanged globe valves.

• Easy installation on valves with specific bonnet and stroke sizes
• No separate linkage required for mounting
• Comes with a conduit connector for standard setups

Product Highlights

This Honeywell actuator is ideal for controlling valve operations in heating, ventilation, and air conditioning systems. It features SPDT control signal, floating mode, and a 95-second nominal driving time, ensuring precise valve positioning and efficient performance.

Product Information

Standard Information

• Brand: Honeywell
• Model: ML6421A
• MPN: ML6421A1017

Technical Specifications

• Application: HVAC
• Torque: 405 lbf
• Stroke: 3/4 inch
• Control Signal: SPDT; Two Position; Floating
• Voltage: 24 Vac
• Weight: 5.1 lb
• Dimensions: 10 3/8 in. high x 7 in. wide x 7 in. deep
• Operational Temperature Range: 14 F to 122 F
• Power Consumption: 11 VA
• Material: ABS Plastic
• Mounting: Directly on Globe Valves
• Ingress Protection: IP54
• Insulation: Class I (24 Vac)
• Humidity Range: 5 to 95% RH
