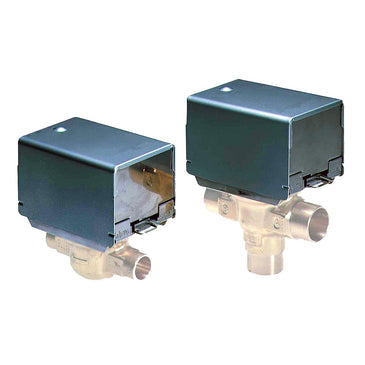

Resideo VU843A1004 Valve Actuator 24V 6 Leads 7/8 Hole Case End

Product Description

The Resideo VU843A1004 is a 24VAC actuator designed for use with VU53 valve bodies. This actuator controls the flow of hot and chilled water in HVAC systems. It suits various commercial applications, including fan coil units and terminal reheat coils.

• Two-position actuator for easy control.
• Humidity resistant and suitable for non-corrosive environments.
• Compact design for simple installation.

Product Highlights

Ideal for HVAC professionals, the VU843A1004 actuator is compact and fits under various convector covers. It ensures reliable operation with a spring return feature, allowing automatic valve return after power restoration.

Product Information

Standard Information

• Manufacturer: Resideo
• Part ID: 41745

Technical Specifications

• Voltage: 24V
• Weight: 1.02 lbs
• Dimensions: 5.95 inches (Length) x 4.55 inches (Width) x 3.25 inches (Height)
• Temperature Range: 34°F to 125°F
• Control Signal: Two position, SPST
• Fail Safe Mode: Spring Return
• Application: HVAC
• Actuator Type: Valve
