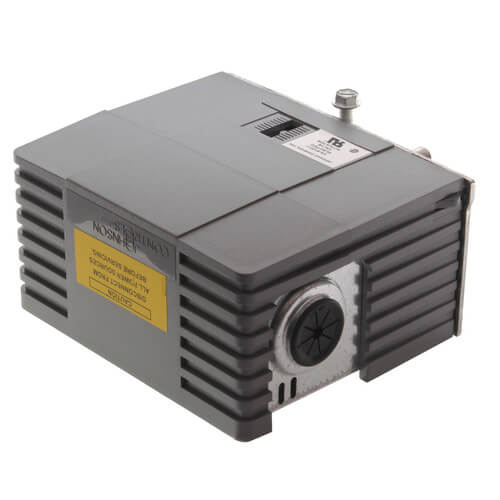

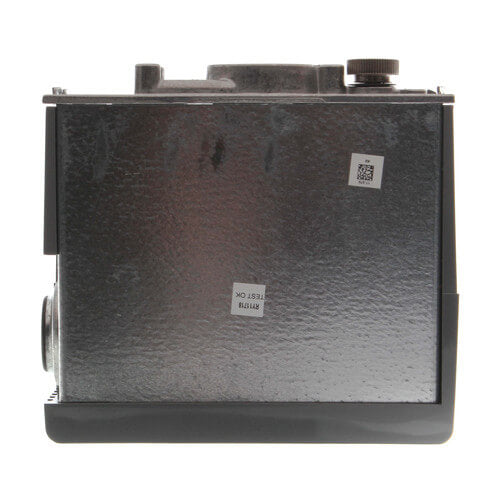

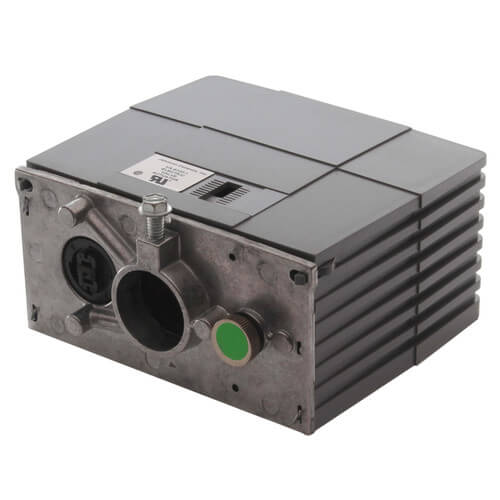

Johnson Controls VA-8122-1 Electric Valve Actuator 120V

Product Description

The Johnson Controls VA-8122-1 Electric Valve Actuator is a pivotal component for managing fluid flow in HVAC systems, ensuring top-grade efficiency in heating, ventilating, and air conditioning applications. Designed to offer precise proportional control of valve operations, this actuator is essential for any professional looking to optimize system performance.

• Equipped with a 22 lb-in torque for powerful performance.
• Features a 120V operation voltage, aligning with standard power supplies.
• Compact design facilitating straightforward installation and maintenance.

Product Highlights

The Johnson Controls VA-8122-1 includes an AUTOCAL pushbutton for easy calibration, ensuring optimal operational efficiency. It's built to function with both 1/2 inch and 3/4 inch VG7000 Series bronze valves, suitable for hot or cold water applications. Its selectable Drive Down or Drive Up options provide application flexibility.

Product Information

Technical Specifications

• Brand: Johnson Controls
• MPN: VA-8122-1
• Power Supply: 120V AC
• Stroke: 5/16 inches
• Control: Proportional
• Seating Force: 22 lb minimum
• Signal Type: Proportional
• Ambient Temperature Range: Up to 150 degrees Fahrenheit
• Electrical Connections: Screw Terminals
