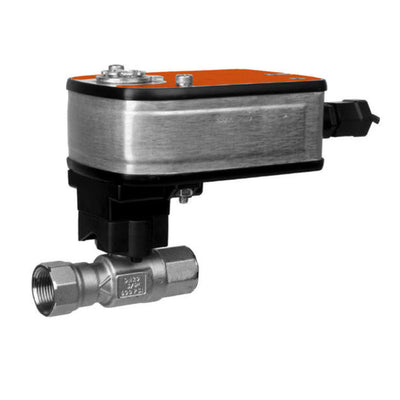

Belimo B225HT1160+LF24-SR Valve 1Npt 2Way 24Vac S/R 2-10Vdc

Product Description

The Belimo B225HT1160+LF24-SR Valve is a dependable solution for HVAC applications. With a 1 inch NPT connection and 2-way functionality, this valve is engineered for air handling units and fan coil heating or cooling. It is also suitable for unit ventilators and VAV box re-heat coils, designed for compact areas where on/off, floating point, and modulating control is required.

• Belimo brand quality
• 1 inch NPT connection
• 24 VAC power with 2-10 VDC control

Product Highlights

The B225HT1160+LF24-SR is ideal for use in variable flow hydronic systems, with applications in heating, cooling, and bypass loops. Its spring return actuator ensures reliable performance.

Product Information

Standard Information

• Brand: Belimo
• MPN: B225HT1160+LF24-SR
• Category: Solenoid Valves

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 degrees
• Cv: 11.6
• End Fitting: Internal thread
• Fluid: High temperature hot water/low pressure steam up to 60 percent glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 1 inch
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds
• Voltage AC/DC: 24 V
