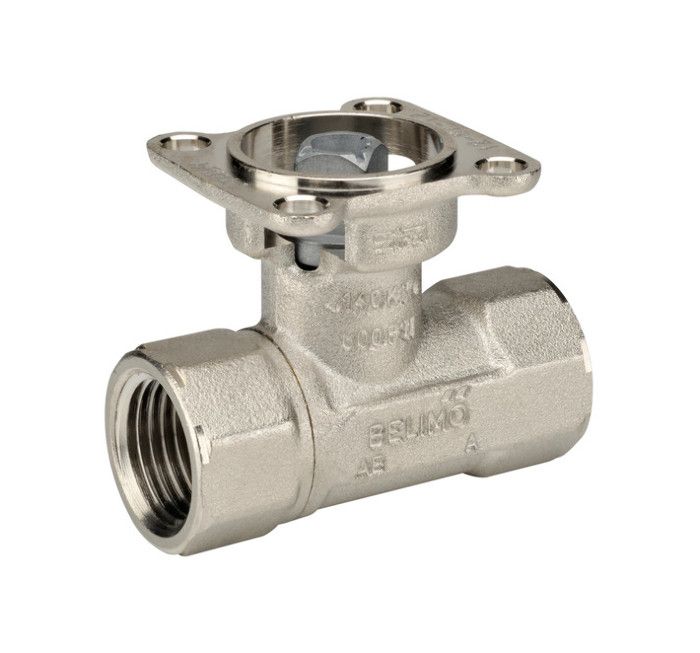

Belimo B207 CCV, 2 Way, 1/2 in NPT, 0.3 Cv

Product Description

The Belimo B207 is a characterized control valve designed for various HVAC applications. This 2-way valve is equipped with a half-inch NPT connection and has a flow rating of 0.3 Cv. Ideal for air handling units, this valve ensures efficient operation in both heating and cooling systems.

• Forged brass body with nickel plating
• Maintenance-free operation with zero leakage
• Rated for water temperatures up to 250 F

Product Highlights

The Belimo B207 valve is suitable for hydronic systems, making it a reliable choice for variable flow conditions. Its ball valve design helps in self-cleaning and allows for easy installation and maintenance.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B207

Technical Specifications

• Fluid Compatibility: Chilled or hot water with up to 60% glycol
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 0 F to 250 F (-18 C to 120 C)
• Valve Size: 0.5 inches
• End Fitting: Internal thread
• Trim Material: Stainless steel
• Controllable Flow Range: 75B0
