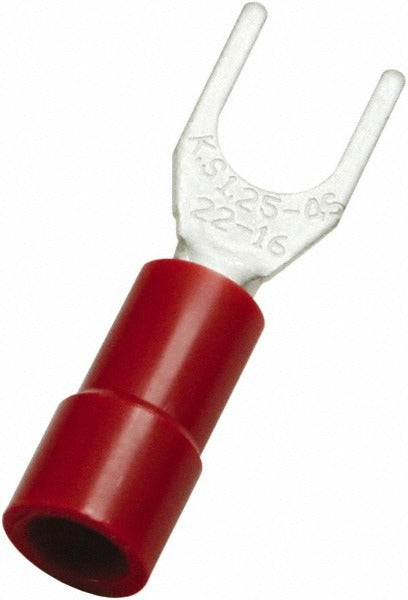

Value Collection ZSVYLL1-3.7 Fork Terminal 22-16 Awg

Product Description

The VALUE COLLECTION ZSVYLL1-3.7 is a partially insulated standard fork terminal designed for secure, vibration-resistant wire terminations in electrical wiring applications. It accepts wire gauges from 22 to 16 AWG and is rated for up to 600 volts, making it suitable for a wide range of low- and medium-voltage control wiring tasks. The terminal features copper contacts for reliable conductivity and a red vinyl insulation sleeve for quick visual gauge identification. With a fork width of 0.283 inches and an overall length of 0.89 inches, this terminal fits a No. 6 stud. Licensed electricians and control wiring technicians are the primary installers.

This fork terminal is used in residential and commercial electrical panels, control cabinets, HVAC equipment wiring, and general-purpose wiring harness assembly. The partial insulation design allows the fork end to seat flush against a terminal stud or lug while keeping the wire barrel protected. It is a standard choice for field wiring of low-voltage control circuits, sensor leads, and equipment grounding connections where a removable stud connection is preferred over a ring terminal.

Key Features

• Accepts 22 to 16 AWG wire for versatile control wiring applications
• Rated at 600 volts for broad low- and medium-voltage compatibility
• Copper contacts provide low-resistance, durable electrical connections
• Red vinyl partial insulation for wire barrel protection and AWG color coding
• Fork width of 0.283 inches fits a No. 6 stud
• Overall length of 0.89 inches suits compact terminal block and panel installations

Compatibility

Designed as a standard-style partially insulated fork terminal for No. 6 stud connections accepting 22 to 16 AWG copper conductors in general electrical and control wiring installations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements for the circuit voltage and ampacity involved. De-energize and lock out the circuit before terminating or removing any wiring connections. Use a proper ratcheting crimping tool sized for 22 to 16 AWG insulated terminals to achieve a reliable, gas-tight crimp. Do not over-crimp or apply heat to the vinyl insulation sleeve, as damage to the sleeve may compromise the insulation rating.
