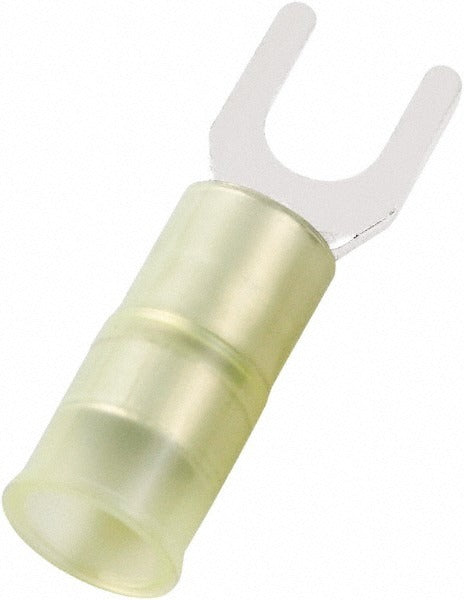

Value Collection ZSNYD2-5-HD1614 Fork Terminal 16-14 Awg

Product Description

The VALUE COLLECTION ZSNYD2-5-HD1614 is a partially insulated, standard fork terminal designed for crimp connections in electrical wiring applications. Rated at 600 volts, it accepts 16 to 14 AWG wire and fits a 10 stud size. The nylon insulation is yellow-coded for quick wire gauge identification in the field. The terminal measures 1.146 inches overall length with a 0.354-inch fork width and 0.051-inch material thickness. Copper contacts provide reliable conductivity. Electricians and panel technicians use this type of terminal when terminating branch circuits, control wiring, or equipment grounding connections to threaded studs or screws.

This fork terminal is suited for residential and commercial electrical work, control panel assembly, HVAC low-voltage wiring terminations, and general equipment wiring where a secure, removable stud connection is required. The partially insulated design exposes the barrel for visual inspection of the crimp while protecting the wire entry point. The yellow color coding indicates compatibility with 16 to 14 AWG conductors, making it easy to sort and match terminals during panel builds or service calls.

Key Features

• Rated 600 volts for use in standard branch circuit and control wiring applications
• Accepts 16 to 14 AWG wire with yellow nylon insulation for quick gauge identification
• Copper contacts for dependable electrical conductivity and crimp integrity
• Fork width of 0.354 inches fits a 10 stud size
• Overall length of 1.146 inches with 0.051-inch material thickness
• Partial insulation allows visual verification of the completed crimp

Compatibility

Designed as a standard OEM-style crimp fork terminal for use with 16 to 14 AWG conductors on 10 stud or screw termination points in electrical panels, control boards, and wiring harnesses.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements. De-energize the circuit completely before terminating or removing any conductors. Use a calibrated ratcheting crimp tool sized for the terminal barrel to achieve a proper crimp — do not use pliers or non-rated tools. Inspect the completed crimp for full wire insertion and secure barrel deformation before reinstating power.
