Value Collection ZRNYDS1-4-25PK Ring Terminal 22-16 Awg 25PK

Product Description

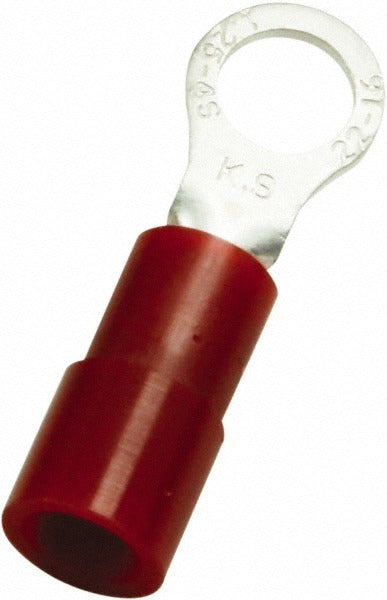

The VALUE COLLECTION ZRNYDS1-4-25PK is a partially insulated circular ring terminal designed for crimp-style wire terminations on copper conductors ranging from 22 to 16 AWG (0.50 to 1.50 sq mm). The terminal body is copper with a red nylon insulation sleeve and fits a No. 8 stud (4.30 mm). Overall length is 0.906 inches with a ring width of 0.260 inches and a contact thickness of 0.030 inches. This pack contains 25 terminals. Licensed electricians, panel builders, HVAC technicians, and equipment wiring specialists install these terminals in control wiring, low-voltage circuits, and equipment harness assemblies.

These ring terminals are well suited for residential and light commercial electrical work, HVAC control panel wiring, and equipment service applications where a secure, vibration-resistant ring termination is required. The No. 8 stud size is common in junction boxes, terminal strips, and control boards. The red color coding identifies the 22 to 16 AWG wire range at a glance, consistent with industry-standard color conventions for small-gauge crimp terminals.

Key Features

• Partially insulated nylon sleeve in red for quick AWG range identification (22 to 16 AWG)
• Copper contact material for reliable conductivity and crimp integrity
• Crimp connection type eliminates the need for soldering
• Fits No. 8 stud (4.30 mm) — common in control boards and terminal strips
• cUL Listed, UL Listed, and RoHS Compliant
• Sold in a pack of 25 (minimum order quantity)

Compatibility

Designed for use with 22 to 16 AWG copper wire on No. 8 stud fasteners. Suitable for crimp termination applications in electrical panels, HVAC control wiring, and equipment harness assemblies wherever a partially insulated ring terminal of this stud size and wire range is specified.

Installation Notes

Installation should be performed by a qualified electrician or trained technician in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating or removing ring terminals. Use a calibrated ratcheting crimping tool rated for the terminal and wire gauge to ensure a gas-tight crimp; do not use pliers or uncalibrated tools as substitutes. Verify stud torque to the equipment manufacturer specification after seating the terminal.
