Value Collection ZRNYD2-5-HD Ring Terminal 16-14 Awg Crimp

Product Description

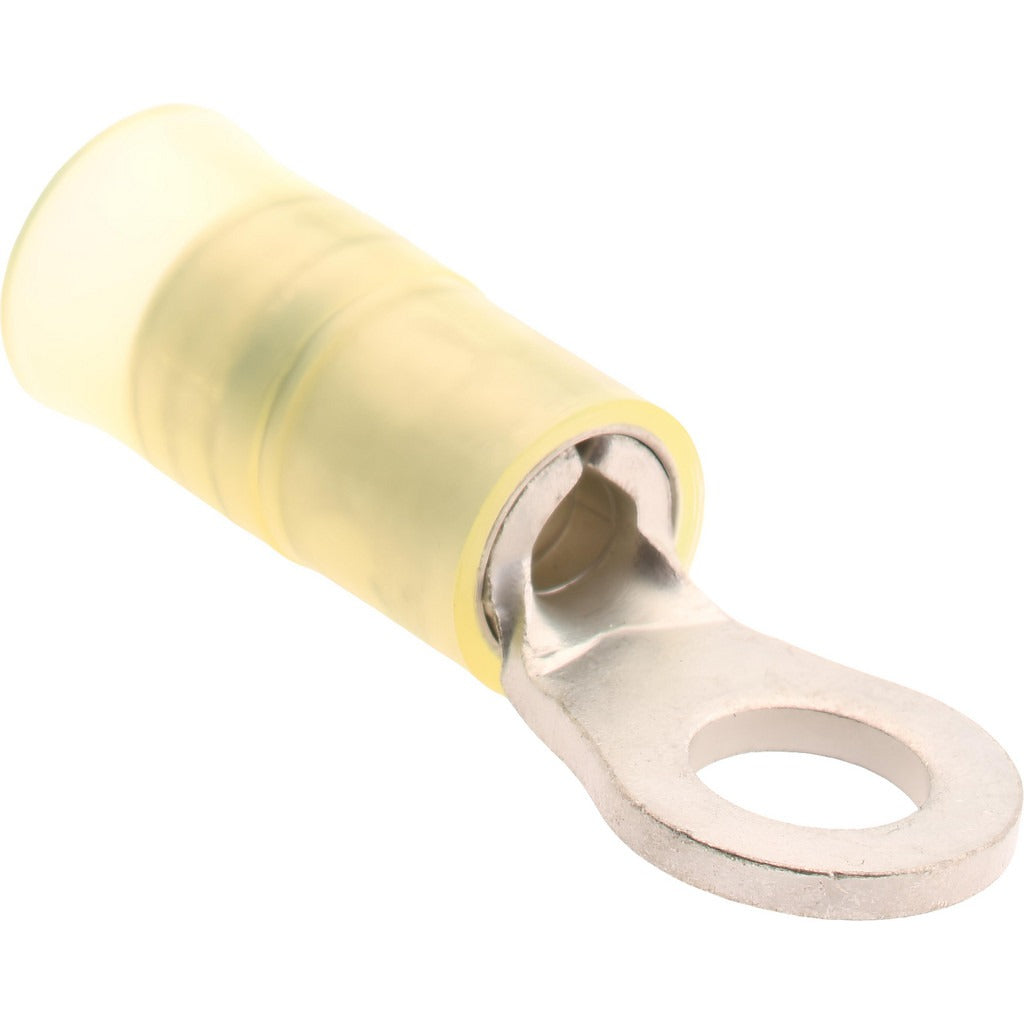

The VALUE COLLECTION ZRNYD2-5-HD is a partially insulated circular ring terminal designed for crimp-style wire termination on 16 to 14 AWG conductors. The copper contact provides reliable conductivity, while the yellow nylon insulation sleeve offers partial protection at the barrel end. Sized for a No. 10 stud (5.30 mm), the terminal measures 1.173 inches in overall length and 0.374 inches in ring width, making it a standard-profile lug suited for panel wiring, control boards, and equipment grounding connections. It meets UL Listed and cUL Listed standards and is RoHS compliant.

This terminal is used in residential and commercial electrical installations where a secure, low-profile ring lug is needed at screw or stud termination points. Typical applications include HVAC control panels, motor terminal strips, junction boxes, and general electrical enclosures. The partially insulated design is common in environments where the installer needs to confirm seating before the insulation sleeve covers the barrel. Wire sizes from 1.50 to 2.50 sq mm are also accommodated, covering metric wire sizing used in some equipment.

Key Features

• Crimp connection type for fast, consistent termination without soldering
• Compatible with 16 to 14 AWG wire (1.50 to 2.50 sq mm)
• No. 10 stud size (5.30 mm) fits standard machine screws and binding posts
• Copper contact material for good conductivity and corrosion resistance
• Yellow nylon partial insulation for color-coded wire range identification
• UL Listed, cUL Listed, and RoHS compliant

Compatibility

Designed as a standard crimp ring terminal for use with 16 to 14 AWG wire on No. 10 stud terminations in electrical panels, control enclosures, and equipment wiring applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize the circuit completely before terminating or removing any ring lug. Use a calibrated ratcheting crimp tool rated for the wire gauge and terminal type to ensure a full, gas-tight crimp. Do not attempt to solder over a crimped barrel, as this can create a stress point and degrade the connection.
